JST B06BJWPFSKRLFSN Waterproof Connector Housing
This 6-position waterproof connector housing from the JWPF series features a 2.0mm pitch and is designed for through-hole mounting. Made from durable UL94V-0 PBT in natural color, it offers excellent resistance to environmental factors and is suitable for use in electronic devices requiring waterproof performance. The connector supports up to 100V and is compatible with AWG #26 to #22 wires. It includes seal rings, rubber seals, and lock mechanisms to ensure ingress protection of grade IPX7, making it ideal for reliable, water-resistant electrical connections across various industries.
JST B06BJWPFSKRLFSN Waterproof Connector Housing Specifications:
- Material: PBT, UL94V-0, natural (white)
- Circuit: 6-position, for through-hole mounting
- Pitch: 2.0mm
- Operating Voltage: Up to 100V
- Current Rating: 3 A AC/DC (AWG #22)
- Temperature Range: -55°C to +85°C
- Contact Resistance: Initial/10 mΩ max, after environmental tests/15 mΩ max
- Insulation Resistance: ≥1000 MΩ
- Withstanding Voltage: 1000 VAC/minute
- Applicable Wire: AWG #26 to #22 (0.13 to 0.33 mm² insulation OD 1.4 to 1.7 mm)
- Ingress Protection: Grade IPX7 according to IEC 60529
- Seal Components: Seal ring, rubber seals, lock mechanisms

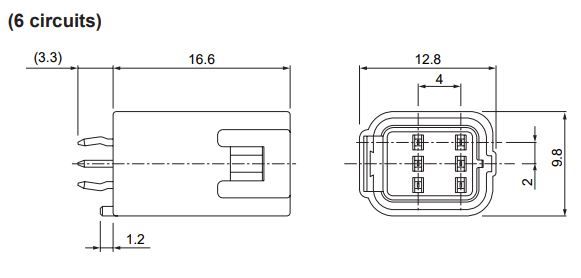

- Dimensions: Compatible with standard JST connectors, designed for reliability and water resistance
Buy the Buy JST Waterproof Connector Part Number B06BJWPFSKRLFSN Online
Enhance your electronics with this waterproof connector housing from the JWPF series, offering 6 positions, IPX7 protection, and a 2.0mm pitch. Made of UL94V-0 PBT, it ensures durability and water resistance for reliable connections in challenging environments. Compatible with AWG #26 to #22 wires and rated for up to 100V, this housing features robust seal rings and locks for secure, waterproof sealing. Perfect for electronic devices requiring high ingress protection, ensuring long-lasting performance and safety in outdoor or wet applications.
Buy JST waterproof connector B06BJWPFSKRLFSN now and experience unmatched reliability and performance in waterproof electronic connections.
Frequently Asked Questions
Where can I buy JST B06BJWPFSKRLFSN?
You can click on the BUY or RFQ button to purchase B06BJWPFSKRLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B06BJWPFSKRLFSN?
You can download the B06BJWPFSKRLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B06BJWPFSKRLFSN?
JST
