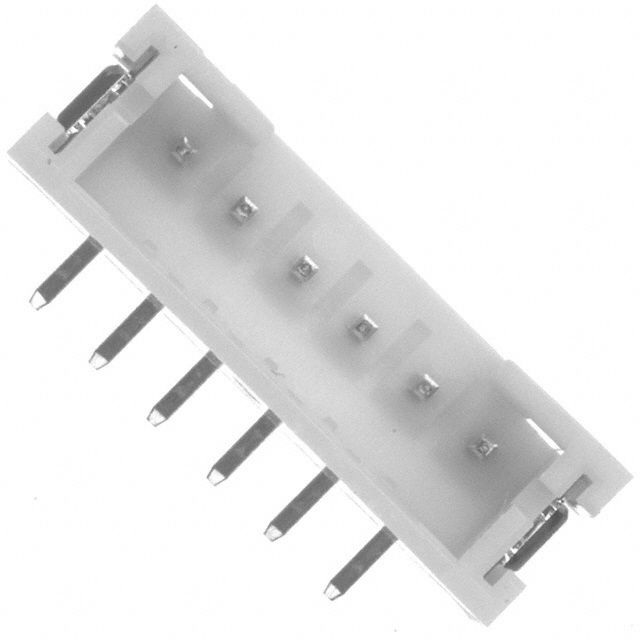

JST B6BPHSM4TBLFSN High-Density PCB Connector
This PH series connector header with 6 positions features a compact 2.0mm pitch, making it ideal for high-density PCB connections. It is suitable for surface mount soldering, supporting applications up to 100V and 2A current. Made from phosphor bronze with tin plating, it provides reliable contact and environmental durability. The connector's dimensions, including height and width, are optimized for tight spaces, offering excellent retention and RoHS compliance. Perfect for electronic assemblies requiring robust and space-efficient connectors.
JST B6BPHSM4TBLFSN High-Density PCB Connector Specifications:
- Pitch: 2.0mm
- Positions: 6
- Current rating: 2A AC, DC
- Voltage rating: 100V AC/DC
- Temperature range: -25°C to +85°C
- Contact Material: Phosphor bronze, tin-plated
- Insulation Resistance: 1,000M ohms minimum
- Withstanding Voltage: 800V AC
- Applicable wire size: AWG #32 to #24
- PCB Thickness: 0.8 to 1.6mm
- Connector height: 8.0mm after mounting
- Connector width: 4.5mm
- RoHS compliant
- Surface mount model: SMT
- Environmental resistance: Meets RoHS standards
Buy the JST Series PH Connector: High-Density PCB Header B6BPHSM4TBLFSN
Purchase the JST Series PH connector B6BPHSM4TBLFSN online today to ensure secure, space-saving PCB connections for your electronics projects. Designed for surface mount applications with a 2.0mm pitch and 6 positions, this connector boasts a current rating of 2A and a voltage support of up to 100V. Made from durable phosphor bronze with tin plating, it provides excellent contact reliability and environmental resistance. Ideal for compact, high-performance electronic assemblies requiring RoHS compliance and high-quality connectors.
Buy JST Series PH connector B6BPHSM4TBLFSN now and experience reliable high-density connections for compact electronic devices.
Frequently Asked Questions
Where can I buy JST B6BPHSM4TBLFSN?
You can click on the BUY or RFQ button to purchase B6BPHSM4TBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B6BPHSM4TBLFSN?
You can download the B6BPHSM4TBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B6BPHSM4TBLFSN?
JST
