JST B8PVHFBBLFSN Shrouded Connector Header
This is an 8-position shrouded connector header from the VH Series with a 3.96mm pitch. Designed for through-hole mounting and soldering, it features a locking ramp for secure connection, suitable for 250V AC/DC applications. Made of copper alloy with tin-plated reflow treatment, it has a natural (white) finish and RoHS compliance. The connector supports circuits with a maximum current of 10A, with dimensions approximately 27.72mm by 31.62mm, and is designed for reliable operation in consumer electronics. It is ideal for applications requiring secure, high-capacity power and signal connections.
JST B8PVHFBBLFSN Shrouded Connector Header Specifications:
- Current rating: 10A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial max 10mΩ, after testing max 20mΩ
- Insulation resistance: 1,000MΩ minimum
- Withstanding voltage: 1,500V AC per minute
- Applicable wire: AWG #22 to #16
- Materials: Copper alloy, tin-plated, RoHS compliant

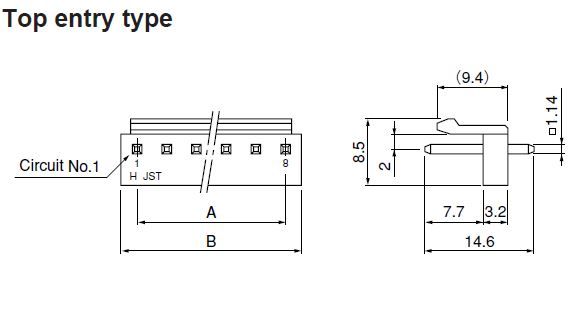

- Dimensions: Approximately 27.72mm x 31.62mm, hole diameter approximately 1.95mm
- Finish: Natural (white color)
- Certification: RoHS, UL94V-0
Buy the Buy JST VH Series Connector Part Number B8PVHFBBLFSN Online
Order the JST VH Series Shrouded Connector Header B8PVHFBBLFSN online today. Designed for reliable, high-capacity power and signal connections in consumer electronics. Featuring a 3.96mm pitch, this connector is RoHS compliant, with a maximum current of 10A and voltage rating of 250V. Its rugged copper alloy construction ensures durability and secure contact. Ideal for applications requiring secure soldering, this connector supports a wide range of wires (AWG #22 to #16). Easy to install and ideal for modern electronic assembly, order now for quality and reliability.
Get JST VH Series Connector B8PVHFBBLFSN today—built for secure power connections and long-lasting durability.
Frequently Asked Questions
Where can I buy JST B8PVHFBBLFSN?
You can click on the BUY or RFQ button to purchase B8PVHFBBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B8PVHFBBLFSN?
You can download the B8PVHFBBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B8PVHFBBLFSN?
JST
