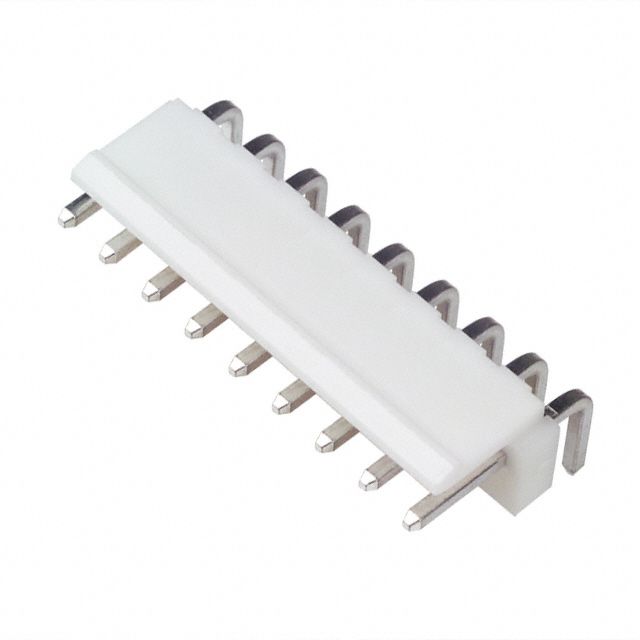

JST B9PSVHLFSN Connector Header
This VH series 9-position connector header features a 3.96mm pitch, side entry design, and a 250V voltage rating. Constructed from copper alloy and UL94V-0 rated material, it is suitable for wire gauges 22-16 AWG. The connector is tin-plated for enhanced durability, complies with RoHS, and displays a natural white color. It provides reliable, secure connections for signal, power, and output circuits in consumer electronics, with a compact footprint and high current capacity, ideal for various PCB applications requiring stable and safe electrical performance.
JST B9PSVHLFSN Connector Header Specifications:
- Current rating: 10A AC, DC (AWG #16)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max, environmental testing/20mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #16
- Applicable PCB thickness: 1.6mm
- Material: Copper alloy, tin-plated (reflow treatment)
- RoHS compliant
- Color: Natural (white)
Buy the Buy JST VH Series Connector Part Number B9PSVHLFSN Online
Purchase the JST VH series connector header B9PSVHLFSN online for your electronic projects. It offers a 3.96mm pitch, side entry wiring, and supports wire gauges from 22 to 16 AWG. Made of high-quality copper alloy with tin-plating, it ensures excellent conductivity, durability, and RoHS compliance. Its compact, reliable design makes it ideal for consumer electronics, power supply connections, and PCB applications requiring secure and safe electrical interfaces. Order now for fast delivery and seamless integration into your device designs.
Get JST VH Series Connector B9PSVHLFSN today—designed for reliable electrical connections and long-lasting durability.
Frequently Asked Questions
Where can I buy JST B9PSVHLFSN?
You can click on the BUY or RFQ button to purchase B9PSVHLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B9PSVHLFSN?
You can download the B9PSVHLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B9PSVHLFSN?
JST
