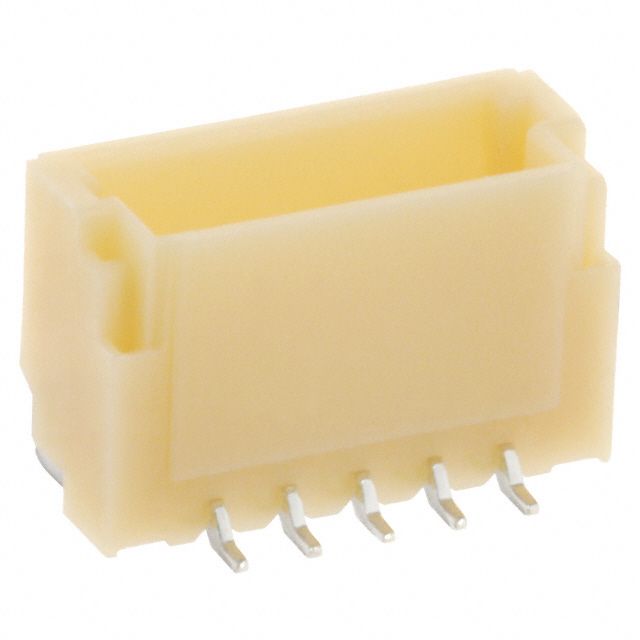

JST BM05BSRSSTBLFSN Surface Mount Connector Header
The SR series surface mount connector header offers a 1.00mm pitch with 5 positions, providing reliable electrical connections for electronic devices. Rated for 50V and 1.0A, it features tin-plated copper alloy contacts and a UL94V-0 rated housing in natural color. Suitable for PCB mounting, it supports both top entry and side entry types, ensuring versatility in compact electronic assemblies. Compliant with RoHS, this connector is ideal for high-density, space-saving applications that demand durability and precise connectivity in industrial and consumer electronics.
JST BM05BSRSSTBLFSN Surface Mount Connector Header Specifications:
- Current rating: 1.0A AC, DC (AWG #28)
- Voltage rating: 50V AC,DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, after environmental testing/40mΩ max
- Insulation resistance: 100MΩ minimum
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size/AWG #32 to #28
- Insulation O.D.: 0.4 to 0.8mm
- Material: Phosphor bronze, tin-plated
- Housing: PA, UL94V-0, natural
- RoHS compliant
- Contact material: Copper alloy, tin-plated
- Mounting method: Surface mount, top entry and side entry types
- Certifications: RoHS, UL94V-0
Buy the JST 050BD– Reliable Connectors for Industrial Applications
Purchase the JST 050BD connector header online today for your electronic projects. Designed with 5 positions and a 1.00mm pitch, it ensures reliable, high-quality electrical connections. Rated at 50V and 1.0A, it features tin-plated copper alloy contacts and a UL94V-0 housing in natural color. Suitable for PCBs requiring compact, space-efficient solutions, this RoHS-compliant connector supports both top entry and side entry configurations, making it ideal for space-constrained industrial and consumer electronic devices.
Get JST 050BD today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy JST BM05BSRSSTBLFSN?
You can click on the BUY or RFQ button to purchase BM05BSRSSTBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BM05BSRSSTBLFSN?
You can download the BM05BSRSSTBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of BM05BSRSSTBLFSN?
JST
