JST BM06BSHJSTBHFK Power Connector
The JST SHJ Series 6-position connector features a secure locking device, designed for reliable power supply connections in LED lighting and electronic devices. Constructed from durable brass with tin plating, it ensures excellent electrical contact and long-term durability. Available in both top and side entry types, the connector supports wire sizes from AWG 32 to 28, with an insulation O.D. range of 0.54 to 0.8 mm. Its halogen-free, RoHS-compliant design makes it suitable for various industrial and consumer electronics requiring secure, low-profile connections.
JST BM06BSHJSTBHFK Power Connector Specifications:
- Current rating: 1.0 A AC, DC (AWG #28)
- Voltage rating: 125 VAC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial 20 mQ max, after environmental tests 40 mQ max
- Insulation resistance: 100 MQ min
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #32 to #28, insulation O.D. 0.54 to 0.8 mm
- Material: Brass, tin-plated, reflow treatment
- Housing Material: PA 4T for top entry, PA6T for side entry
- RoHS compliant

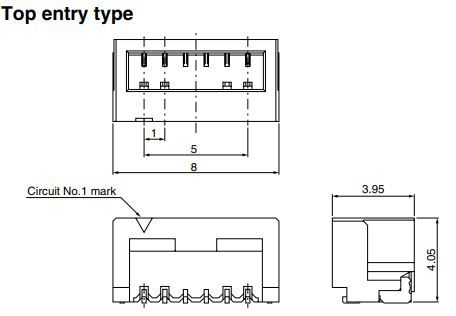

- Connector type: Top entry, side entry
- Number of circuits: 6 positions
- Construction: Moisture resistant, halogen-free
- Dimensions (approx.): Length 2.65 mm, suitable for compact electronic assemblies
Buy the JST Series SHJ 6-Position Power Connector: BM06BSHJSTBHFK
Purchase the JST Series SHJ 6-position connector online today and enjoy reliable, secure power connections for LED lighting and electronic projects. Featuring a robust brass construction with tin plating for optimal conductivity and durability, this connector supports wire sizes AWG 32 to 28 and is halogen-free and RoHS-compliant. Its compact design with a secure locking structure ensures stable connections in space-constrained environments. Ideal for industrial, consumer, and LED applications, this high-quality connector guarantees long-lasting performance and safety, making it the perfect choice for professional electronic assemblies.
Get JST Series SHJ 6-Position Power Connector BM06BSHJSTBHFK today—built for secure connections, durability, and efficient power supply in LED and electronic applications.
Frequently Asked Questions
Where can I buy JST BM06BSHJSTBHFK?
You can click on the BUY or RFQ button to purchase BM06BSHJSTBHFK from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BM06BSHJSTBHFK?
You can download the BM06BSHJSTBHFK datasheet or visit the JST website for support.
Who is the manufacturer of BM06BSHJSTBHFK?
JST
