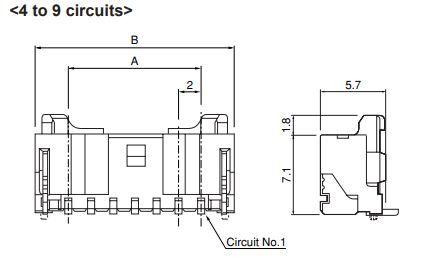

JST BM09BPASSTFLFSN Connector Header 2.00mm Pitch
The 9-position 2.00mm pitch connector header is ideal for surface-mount applications, offering a secure lock, high reliability, and tin-plated contacts. Its top entry design facilitates easy installation, while the built-in mounting boss ensures stability. Constructed with a UL94V-0 PA housing in a natural finish, it complies with RoHS standards and withstands temperatures from -25°C to +85°C. Suitable for wire-to-board connections, this connector provides a dependable solution for complex wiring harnesses, emphasizing durability, ease of assembly, and secure electrical contact.
JST BM09BPASSTFLFSN Connector Header 2.00mm Pitch Specifications:
- Number of positions: 9
- Pitch: 2.00mm
- Housing Material: UL94V-0 PA, natural
- Contact Material: Tin-plated copper alloy
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial/ 10mΩ max, After testing/ 20mΩ max
- Insulation Resistance: Min. 1,000MΩ
- Withstanding Voltage: 800V AC for 1 minute
- Applicable Wire: AWG #28 to #22
- Mounting Type: Surface Mount (SMT)
- Locking Mechanism: Secure lock with retainer
- RoHS Compliant: Yes
- Finish: Tin-plated contacts, natural housing
- Certifications: UL94V-0, RoHS
Buy the Buy JST Connector Header Part Number BM09BPASSTFLFSN Online
Purchase the JST Connector Header with 9 positions and 2.00mm pitch online today. Designed for surface-mount applications, it features a secure locking mechanism, reliable tin-plated contacts, and a UL94V-0 PA housing. Easy to install with top entry design and a mounting boss for added stability, this connector ensures durable and stable electrical connections. Ideal for complex wiring harnesses and PCB assembly, it satisfies RoHS standards for environmental safety, making it a top choice for reliable electronic projects.
Get JST BM09BPASSTFLFSN today—built for precision and long-lasting durability in surface-mount electronic assemblies.
Frequently Asked Questions
Where can I buy JST BM09BPASSTFLFSN?
You can click on the BUY or RFQ button to purchase BM09BPASSTFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BM09BPASSTFLFSN?
You can download the BM09BPASSTFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of BM09BPASSTFLFSN?
JST
