JST BM10BSRSSTBTLFSN Connector Header
Surface mount connector header from the SR series with 10 positions and a 1.00mm pitch, suitable for applications up to 50V. It features tin-plated brass contacts, pick-and-place design, solder retention, and a natural finish for reliable, professional connections in electronics and robotics applications. Compatible with SMD assembly and RoHS compliant, this connector ensures secure electrical contact with conductor sizes of AWG #30, 7 strands, insulation O.D. of 0.54 to 0.58mm, and withstands voltages up to 500V AC. Ideal for compact PCB interconnections.
JST BM10BSRSSTBTLFSN Connector Header Specifications:
- Contact Material: Brass, tin-plated (reflow treatment)
- Housing Material: PA, UL94V-0, natural
- Number of Positions: 10
- Pitch: 1.00mm
- Voltage Rating: 50V DC
- Current Rating: 0.7ADC
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial/20mΩ max, after environmental testing/40mΩ max
- Insulation Resistance: ≥100MΩ min
- Withstanding Voltage: 500V AC/minute
- Applicable Wire: Conductor size/AWG #30, 7 strands, tin-coated annealed copper
- Insulation O.D.: 0.54 to 0.58mm
- RoHS Compliant

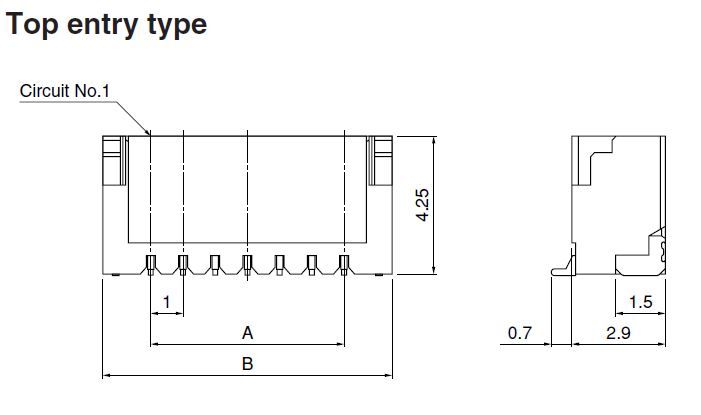

Buy the Buy JST Connector Part Number BM10BSRSSTBTLFSN Online
Purchase the JST connector header from the SR series online today and enjoy superior electrical performance and easy assembly. Designed with a 1.00mm pitch and 10 positions, this connector is ideal for PCB interconnections in electronics, robotics, and automation systems. Features include tin-plated brass contacts, a natural finish for professional appearance, pick-and-place capability, and solder retention for secure connections. RoHS compliant and capable of handling voltages up to 50V, ensuring safety and durability in your projects.
Buy JST BM10BSRSSTBTLFSN connector now and experience reliable, compact connections for electronic and robotics projects.
Frequently Asked Questions
Where can I buy JST BM10BSRSSTBTLFSN?
You can click on the BUY or RFQ button to purchase BM10BSRSSTBTLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BM10BSRSSTBTLFSN?
You can download the BM10BSRSSTBTLFSN datasheet or visit the JST website for support.
Who is the manufacturer of BM10BSRSSTBTLFSN?
JST
