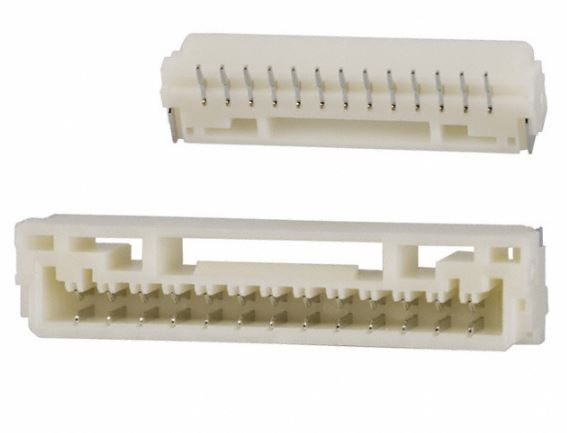

JST BM13BGHSTBTLFSN Connector Header
This 13-position surface mount connector header from the GH Series features a 1.25mm pitch, ensuring reliable connections for electronics applications. Designed with a secure locking ramp, it provides quick and dependable mating while preventing accidental disconnection. Rated for up to 50V and 1.0A, it accommodates wire sizes from AWG #30 to #26 with insulation diameters between 0.8 and 1.0mm. Made from UL94V-0 PBT material with tin-plated phosphor bronze contacts, it offers RoHS compliance and durability suitable for LCDs, small electronics, and automation projects. Easy installation and stable performance are hallmarks of this connector.
JST BM13BGHSTBTLFSN Connector Header Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact material: Phosphor bronze, tin-plated (reflow treatment)
- Housing material: PBT, UL94V-0, natural (white)
- Insulation O.D.: 0.8 to 1.0mm
- Wire size range: AWG #30 to #26
- Contact resistance: Not specified
- Withstanding voltage: 500V AC/minute
- Insulation resistance: 100MΩ min.
- RoHS compliant
- Dimensions: Length 19.50mm, Width 17.50mm
Buy the JST Series GH 13-Position Connector Header: BM13BGHSTBTLFSN
Buy the JST Series GH 13-Position Connector Header online today for your electronic assemblies. Featuring a 1.25mm pitch, secure locking ramp, and rated for up to 50V, this RoHS-compliant connector offers easy mounting and stable connections. Made from durable UL94V-0 PBT with tin-plated phosphor bronze contacts, it supports wire sizes from AWG #30 to #26 and withstands temperatures from -25°C to +85°C. Improve your small electronics, automation systems, or LCD connections with this reliable, easy-to-install connector header today.
Order your JST Series GH 13-Position Connector Header today and ensure reliable connections for your small electronics and LCD projects.
