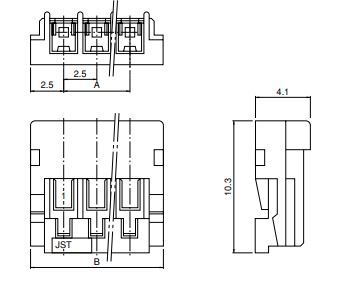

JST HRP03S connector receptacle
This 3-position, 2.5mm pitch HR Series connector receptacle is designed for free-hanging electronic applications, featuring reliable crimp termination and RoHS compliance. Made from phosphor bronze, tin-plated for durability, it supports wire ranges from AWG 26 to 22 and can be used with PC boards 0.8 to 1.6mm thick. Its compact design ensures high reliability and interchangeability, suitable for industrial electronic assemblies requiring dependable connections, and it fits perfectly with standard crimping tools and automated assembly processes for efficient manufacturing.
JST HRP03S connector receptacle Specifications:
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: 10mΩ max. initial, 20mΩ max. after testing
- Insulation resistance: ≥ 1000MΩ
- Withstanding voltage: 1000V AC/minute
- Applicable wire: AWG #26 to #22
- Applicable PC board thickness: 0.8 to 1.6mm
- Material: Phosphor bronze, tin-plated
- RoHS compliant
Buy the JST HRP03S – Reliable Crimp Connectors for Industrial Applications
Discover the dependable JST HR series connector receptacle, ideal for industrial and electronic automation projects. Featuring a 2.5mm pitch, crimp termination, and RoHS compliance, this 3-position connector ensures secure, reliable connections in free-hanging applications. Made from phosphor bronze and tin-plated for durability, it supports wire ranges from AWG 26 to 22 and fits PC boards 0.8 to 1.6mm thick. Perfect for professionals seeking quality, efficiency, and compatibility with automated assembly tools, this connector is essential for reliable electronics manufacturing.
Order your JST HRP03S Series 3-Position 2.5mm Pitch Connector today and ensure your projects benefit from robust, dependable electrical connections.
Frequently Asked Questions
Where can I buy JST HRP03S?
You can click on the BUY or RFQ button to purchase HRP03S from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part HRP03S?
You can download the HRP03S datasheet or visit the JST website for support.
Who is the manufacturer of HRP03S?
JST
