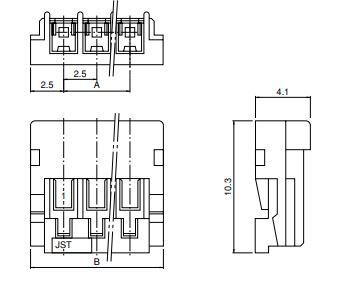

JST HRP06S connector receptacle
This 6-position, 2.5mm pitch HR Series connector receptacle is designed for secure, reliable connections in various electronic applications. It features a disconnectable crimp style termination for easy assembly and maintenance. The connector is suitable for free hanging installation and complies with RoHS standards, offering high reliability and interoperability. Crafted with phosphor bronze, tin-plated for optimal conductivity and corrosion resistance, it supports applications requiring a 3A current rating and operates within a temperature range of -25°C to +85°C. Compatible with AWG #26 to #22 wire sizes, it ensures stable, low-resistance connections for versatile usage.
JST HRP06S connector receptacle Specifications:
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max. / environmental testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: AWG #26 to #22
- Applicable PC board thickness: 0.8 to 1.6mm
- Material: Phosphor bronze, tin-plated
- Connector Pitch: 2.5mm
- Number of positions: 6
- Finish: Natural
Buy the Buy JST HR Series Connector Receptacle Part Number HRP06S Online
Purchase the JST HR Series connector receptacle online today for high reliability, easy crimp termination, and versatile applications. Designed with a 2.5mm pitch and 6 positions, this connector supports up to 3A current and operates from -25°C to +85°C. Crafted from phosphor bronze and tin-plated for corrosion resistance, it ensures stable low-resistance connections. Compatible with AWG #26 to #22 wires and PCB thicknesses of 0.8 to 1.6mm, offering durable and accurate performance for electronic projects.
Get JST HRP06S today—built for secure connection and long-lasting durability in electronic devices.
Frequently Asked Questions
Where can I buy JST HRP06S?
You can click on the BUY or RFQ button to purchase HRP06S from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part HRP06S?
You can download the HRP06S datasheet or visit the JST website for support.
Who is the manufacturer of HRP06S?
JST
