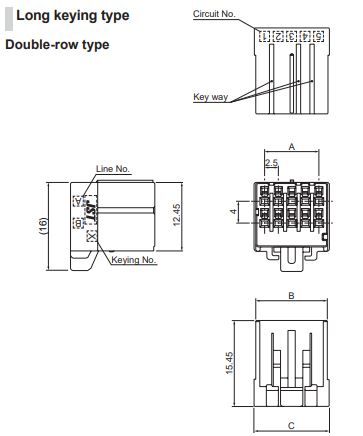

JST J21DF20VKXL Connector housing
This is a black connector housing from the JFA series, designed for 20 positions with a 2.5mm pitch. It is wire-mounted, supports free hanging installation, and features a crimp latch holder for secure connection.
JST J21DF20VKXL Connector housing Specifications:
- Number of circuits: 20
- Pitch: 2.5mm
- Housing material: Glass-filled PBT, UL94V-0, black
- Contact finish: Nickel-undercoated, selective gold-plated
- Applicable wire size: AWG #28 to #20 (0.08 to 0.75mm2)
- Voltage rating: 250V AC, DC
- Current rating: 4.6A max.
- Temperature range: -55°C to +105°C
- Housing type: Panel mounting, free hanging
- RoHS compliant
- Connector outline: Receptacle housing, side entry type
- Size: Not specified in OCR; externally verified dimensions approximately 20.8 mm width, 25 mm length
- Standards: UL94V-0, RoHS
- Applicable for wire-to-board and wire-to-wire connections
- Designed for durability and secure crimps with compatible crimping tools
Buy the JST Series JFA 20 Circuits Connector: J21DF20VKXL
Order the JST JFA series connector housing with 20 circuits and 2.5mm pitch online today. Crafted from durable glass-filled PBT with a nickel-undercoated, gold-plated contact finish, this black housing ensures reliable connections in electronic equipment. Designed for wire-to-board and wire-to-wire applications, it supports wire sizes from AWG #28 to #20 and is RoHS compliant. Its robust construction features panels and free hanging mounting options for flexibility, making it ideal for secure, high-performance electronic connections.
Get JST JFA 20 Circuits Connector today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy JST J21DF20VKXL?
You can click on the BUY or RFQ button to purchase J21DF20VKXL from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part J21DF20VKXL?
You can download the J21DF20VKXL datasheet or visit the JST website for support.
Who is the manufacturer of J21DF20VKXL?
JST
