JST JAC15P3 15-Pin D-Sub Socket
This D-Sub connector with 15 positions features a socket housing, offering reliable electronic component connections. Made from robust materials, it ensures optimal shielding with gold or tin plating for enhanced conductivity and corrosion resistance. The insulator is glass-filled PBT UL94V-0, providing heat resistance, while the steel shell offers durability and shielding effectiveness. Designed to accommodate standard PC board thickness of 1.6mm, it supports AC and DC ratings up to 250V and currents up to 3A. Its modular design allows easy assembly and secure mating, ideal for compact electronic systems and automation interfaces.
JST JAC15P3 15-Pin D-Sub Socket Specifications:
- Materials: Brass contact, Gold-plated (reflow treatment), Glass-filled PBT insulator, Steel shell
- Current Rating: 3A AC/DC (2A for 37 circuits)
- Voltage Rating: 250V AC/DC
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 5,000MΩ min
- Withstanding Voltage: 1,000V AC/minute
- Number of Circuits: 15
- Connector Style: Socket
- Contact Resistance: Max 30mΩ after environmental testing
- Plating: Gold or Tin, RoHS compliant
- Applicable PC Board Thickness: 1.6mm
- Shell: Steel, Copper-undercoated, Nickel-plated

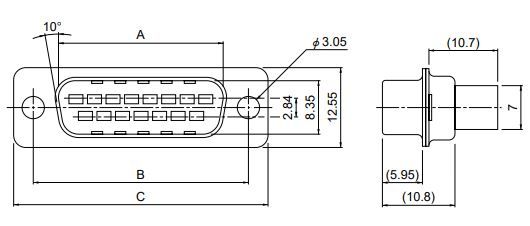

- Dimensions: 24.67mm (A), 33.32mm (B), 39.14mm (C)
Buy the JST Series J Series 15-Pin D-Sub Socket Connector: JAC15P3
Purchase the JST 15-Pin D-Sub Socket Connector online today for dependable connectivity in electronic circuits, automation devices, and control systems. Crafted from high-quality materials, it offers excellent shielding and corrosion resistance with gold or tin plating. Designed for easy installation, the connector supports up to 250V and 3A current ratings, with a robust steel shell for durability. Its compact size ensures versatility in various electronic applications, providing secure and reliable connections with minimal maintenance. Enhance your electronic assembly with this trusted component for long-lasting performance.
Get JST J Series 15-Pin D-Sub Socket Connector today—built for reliability and easy assembly in electronic and automation systems.
Frequently Asked Questions
Where can I buy JST JAC15P3?
You can click on the BUY or RFQ button to purchase JAC15P3 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part JAC15P3?
You can download the JAC15P3 datasheet or visit the JST website for support.
Who is the manufacturer of JAC15P3?
JST
