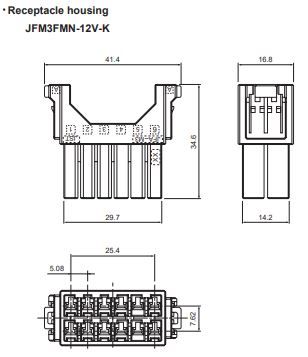

JST JFM3FMN12VK Receptacle Housing
Receptacle housing designed for the J300 series, suitable for panel and drawer mounting. Features a durable metal shell and waterproof construction, providing reliable protection and secure connection in various applications.
JST JFM3FMN12VK Receptacle Housing Specifications:
- Current rating: 3A max. AC, DC (J2900 series) and 2.5A (J2000, J300 series)
- Voltage rating: 250V AC, DC (J2900), 250V AC/DC (J2000), 600V AC/DC (J300 series)
- Temperature range: -55°C to +105°C
- Withstanding voltage: 1,500V AC/minute (J2000 series), 2,200V AC/minute (J300 series)
- Applicable wire: AWG #28 to #20 (0.08 to 0.75 mm²)
- Cable O.D.: 11.1 to 13.6 mm
- Material: Metal shell
- Mounting: Panel and drawer types with M3 x 8L washer screw or M4 stepped screw options
- Compatibility: For J2000 and J300 series connectors, common contact design
- RoHS compliant
- Standards: Recognized E60389
Buy the JST Series J2900 Receptacle Housing: JFM3FMN12VK
Enhance your electrical assemblies with JST Series J300 Receptacle Housing, featuring a rugged metal shell and waterproof design. Suitable for panel and drawer mounting, it ensures secure, corrosion-resistant connections perfect for demanding environments. Manufactured to meet RoHS standards, this reliable component simplifies installation and maintenance, providing long-lasting performance in industrial, automation, or connectivity applications. Trust JST for high-quality, easy-to-mate waterproof housing that protects your electronic systems effectively.
Order your JST Series J300 Receptacle Housing today and ensure your connections are protected with reliable waterproof metal shell quality.
Frequently Asked Questions
Where can I buy JST JFM3FMN12VK?
You can click on the BUY or RFQ button to purchase JFM3FMN12VK from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part JFM3FMN12VK?
You can download the JFM3FMN12VK datasheet or visit the JST website for support.
Who is the manufacturer of JFM3FMN12VK?
JST
