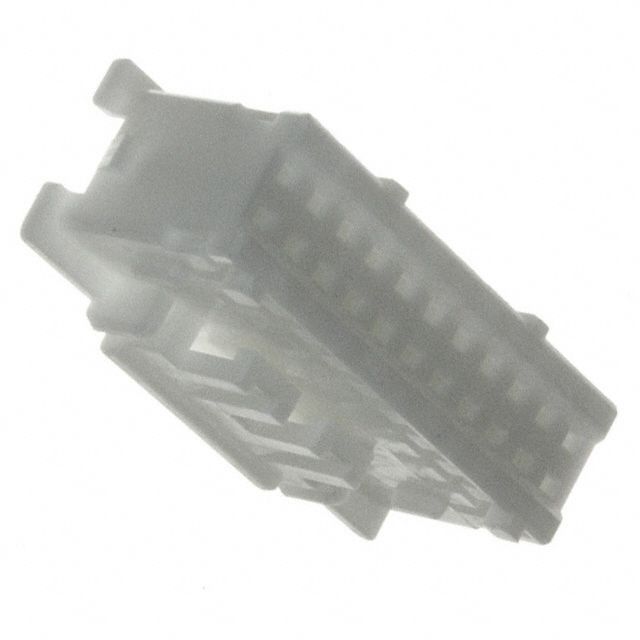

JST PADP22V1S industrial connector housing
This 22-position connector housing with a 2.00mm pitch is ideal for free-hanging applications in industrial and electronic systems. It features crimp terminal contacts made of phosphor bronze and tin-plated for reliable electrical connection. The housing incorporates a latch lock for secure mating and is designed with natural-colored UL94V-0 material. Suitable for use with AWG #28 to #22 wires, it supports current ratings of 3A and voltage of 250V AC/DC. This connector meets RoHS standards and features easy insertion and withdrawal, making it suitable for various industrial applications.
JST PADP22V1S industrial connector housing Specifications:
- Pitch: 2.00mm
- Number of Positions: 22
- Housing Material: UL94V-0 PBT, natural color
- Contact Material: Phosphor bronze, tin-plated
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Applicable Wire Range: AWG #28 to #22
- Temperature Range: -25°C to +85°C
- Insulation Resistance: 1,000MΩ min.
- Contact Resistance: Initial 10mΩ max., after environmental testing 20mΩ max.
- Withstanding Voltage: 800V AC/minute
- Certifications: RoHS compliant
- Suitable for PC board thickness: 1.6mm
- Includes latch lock for secure connection
- Designed for industrial use and electronic systems
Buy the JST 22V2013 – Reliable Connector Housing for Industrial Applications
Purchase JST 22V2013 connector housing online today to ensure reliable, secure electrical connections in your industrial and electronic projects. This 22-position housing features a 2.00mm pitch with crimp terminal contacts, providing excellent contact resistance and durability. Its natural-colored UL94V-0 material enhances safety and compliance with RoHS standards. Designed for easy insertion and withdrawal, the connector supports up to 3A and 250V ratings, making it ideal for various industrial applications. Order now for fast delivery and quality assurance.
Get JST 22V2013 today—built for precision and long-lasting durability in industrial systems and electronic connections.
Frequently Asked Questions
Where can I buy JST PADP22V1S?
You can click on the BUY or RFQ button to purchase PADP22V1S from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PADP22V1S?
You can download the PADP22V1S datasheet or visit the JST website for support.
Who is the manufacturer of PADP22V1S?
JST
