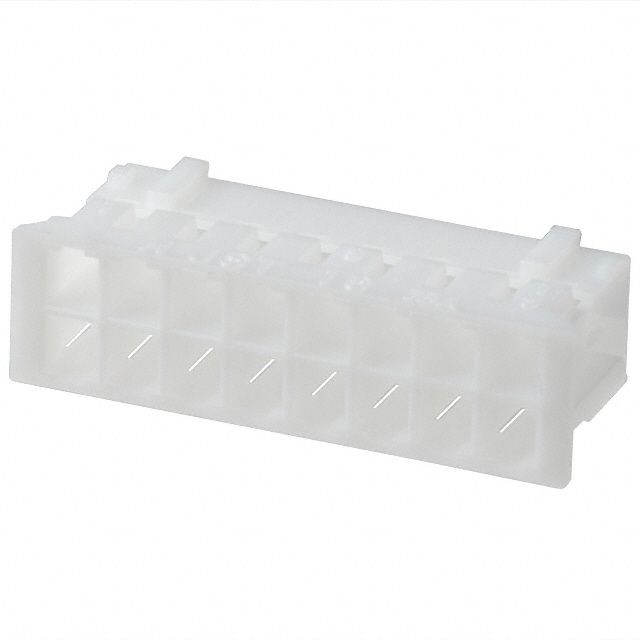

JST PHDR16VS connector header
This 16-position PHD Series connector header features a 2.0mm pitch and is designed for high-density, low-profile connections in electronic applications. It offers reliable crimp contacts compatible with AWG #28 to #22 wires, and its natural nylon finish ensures durability and resistance to environmental factors. Suitable for free hanging installation, this connector meets industry standards and RoHS compliance, offering stable electrical performance with a current rating of 3A and a voltage rating of 250V. Its compact design makes it ideal for space-constrained assemblies, delivering robust and secure connections for circuit board interconnections.
JST PHDR16VS connector header Specifications:
- Pitch: 2.0mm
- Number of positions: 16
- Contact material: Copper alloy, tin-plated (reflow treatment)
- Wire compatibility: AWG #28 to #22
- Rated current: 3A AC/DC
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 1,000MΩ min.
- Contact resistance: Initial value/ 10mΩ max., after environmental testing/ 20mΩ max.
- Material: Glass-filled nylon, UL94V-0, natural (white)
- RoHS compliant
- Applicable PC board thickness: 1.6mm
- Standards: Recognized E60389, Certified LR20812
Buy the JST PHD Series 16-Position Connector Header: PHDR16VS
Acquire the JST PHD Series 16-position connector header online today to ensure high-density, space-efficient electronic connections. Designed with a 2.0mm pitch and compatible with AWG #28 to #22 wires, this header provides dependable crimp contacts rated at 3A and 250V. Its natural nylon finish offers durability and resistance to environmental stress, making it ideal for complex circuit board assemblies. Purchase now for guaranteed quality and fast delivery, supporting your project with top-tier connectivity components that meet all industry standards and compliance requirements.
Get JST PHD Series 16-Position Connector Header today—built for reliable electrical connections in space-constrained environments.
Frequently Asked Questions
Where can I buy JST PHDR16VS?
You can click on the BUY or RFQ button to purchase PHDR16VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PHDR16VS?
You can download the PHDR16VS datasheet or visit the JST website for support.
Who is the manufacturer of PHDR16VS?
JST
