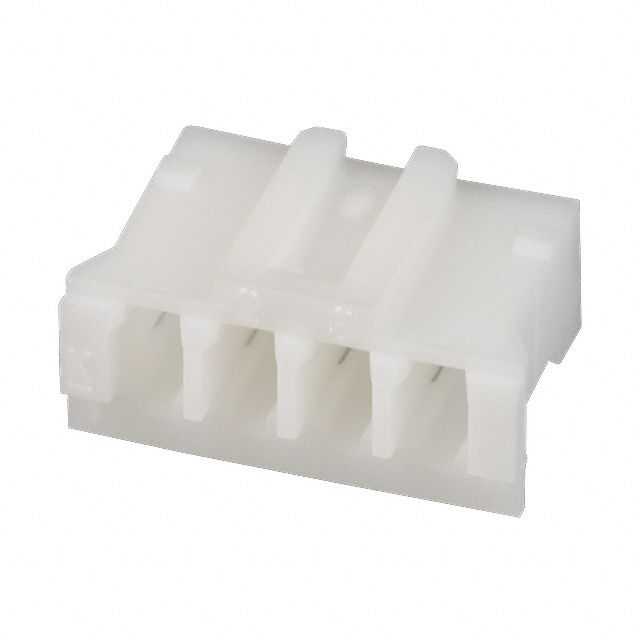

JST PHR4 Connector Housing
Connector housing from the PH Series, designed for 4 positions with a 2.00mm pitch. Suitable for crimp mounting and featuring a detent lock mechanism. The housing is in a natural color. This high-density connector provides reliable contact, is RoHS compliant, and suitable for internal wiring to printed circuit boards. It supports wire sizes from AWG #32 to #24, with a current rating of 2A. Its compact, low-profile design is ideal for space-constrained electronic assemblies requiring durability and high connection stability.
JST PHR4 Connector Housing Specifications:
- Pitch: 2.00mm
- Number of Positions: 4
- Material: Thermoplastic (housing), Brass contact
- Color: Natural
- Current Rating: 2A AC/DC
- Voltage Rating: 100V AC/DC
- Wire Size: AWG #32 to #24
- Temperature Range: -25°C to +85°C
- Insulation Resistance: 1,000MΩ min.
- Contact Resistance: Initial / 10mΩ, After testing / 20mΩ max.
- Applicable PCB thickness: 0.8 to 1.6mm
- RoHS Compliant
Buy the JST Series PH Connector Housing 4 Positions 2.00mm: PHR4
Order the JST PHR4 connector housing online today for high-density, space-saving internal wiring solutions. Designed with durability and reliability in mind, this 2.00mm pitch connector features a robust detent lock mechanism, RoHS compliance, and support for wire sizes from AWG #32 to #24. Its compact profile is perfect for dense electronic circuits requiring secure, high-quality connections. Enjoy fast delivery and trusted quality for your manufacturing or DIY projects by purchasing online now.
Get JST PHR4 connector housing today—built for reliable PCB connections and space-efficient designs in electronic assemblies.
Frequently Asked Questions
Where can I buy JST PHR4?
You can click on the BUY or RFQ button to purchase PHR4 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PHR4?
You can download the PHR4 datasheet or visit the JST website for support.
Who is the manufacturer of PHR4?
JST
