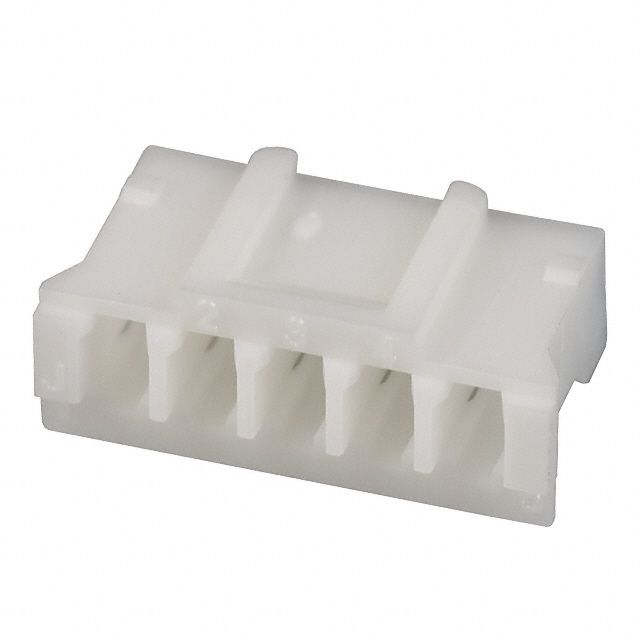

JST PHR5 High-density connector
The PH Series connector housing with 5 positions and a 2.00mm pitch is designed for high-density internal wiring connections to printed circuit boards. It features reliable contact mechanisms, a fully shrouded header, and a PCB retention mechanism. Suitable for surface mount (SMT) and through-hole applications, it offers durability with a natural color and RoHS compliance. Its compact low-profile design measures approximately 8.0mm in height after mounting, making it ideal for space-constrained electronic devices requiring secure and efficient connections.
JST PHR5 High-density connector Specifications:
- Pitch: 2.00mm
- Positions: 5
- Height after mounting: approximately 8.0mm
- Width: 4.5mm
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max, Environmental/20mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 800V AC/min
- Applicable wire: AWG #32 to #24
- PCB thickness: 0.8 to 1.6mm
Buy the Cece Series PH Connector: PHR5
Order the Cece Series PHR5 connector online today and enjoy secure, space-efficient wiring solutions for your electronics. This high-quality connector features a 2.00mm pitch, 5 positions, reliable crimp terminals, and RoHS compliance. Its natural color complements any design, with a compact height of approximately 8.0mm after installation, ideal for space-constrained devices. With excellent electrical and mechanical properties, it ensures durable connections in various applications, making it a perfect choice for professionals seeking high reliability and ease of assembly in PCB wiring systems.
Buy Cece PH Series PHR5 connector now and experience unmatched reliability and space-saving performance for your electronic projects.
Frequently Asked Questions
Where can I buy JST PHR5?
You can click on the BUY or RFQ button to purchase PHR5 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PHR5?
You can download the PHR5 datasheet or visit the JST website for support.
Who is the manufacturer of PHR5?
JST
