JST PHR5PK Connector Housing
A pink plastic connector housing with 5 positions and a 2mm pitch, designed for secure wire connection in electronic assemblies. This low-profile connector offers reliable contact, a fully shrouded header, and PCB retention mechanism, suitable for high-density wiring. It features surface mount and top entry types, with a robust construction compliant with RoHS standards. Ideal for compact electronic devices, its precise dimensions and insulation ensure durability, easy insertion, and effective electrical performance in various industrial and consumer applications.
JST PHR5PK Connector Housing Specifications:
- Pitch: 2mm
- Positions: 5
- Material: Plastic, RoHS compliant
- Wire Range: AWG #32 to #24
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial 10mΩ, after environmental testing 20mΩ max.
- Insulation Resistance: 1,000MΩ min.
- Withstanding Voltage: 800V AC/min.
- Applicable Wire Diameter: 0.08~0.22mm (AWG 32 to 24)
- Mounting Type: Surface mount, top entry, side entry

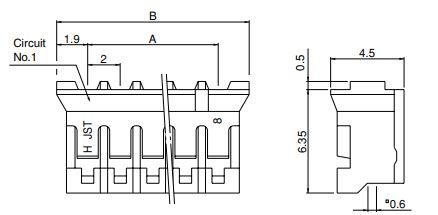

- Dimensions: Height approximately 8.0mm, width 4.5mm (after mounting)
- Standards: RoHS, recognized by UL, certified by LR
Buy the Cece Series Connector: 2mm Pitch 5 Positions RoHS Compliant: PHR5PK
Enhance your electronic assemblies with our pink connector housing featuring 5 positions and a 2mm pitch, designed for secure and reliable wiring. Made from RoHS-compliant plastic, it ensures durability, easy insertion, and excellent electrical performance. Suitable for high-density applications, it offers surface mount and top entry options, with dimensions optimized for compact device design. Order online now to enjoy quick delivery, proven reliability, and an ideal solution for electronic manufacturing, prototyping, and repair projects that demand precision and safety.
Order your Cece Series connector housing with 2mm pitch and 5 positions today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy JST PHR5PK?
You can click on the BUY or RFQ button to purchase PHR5PK from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PHR5PK?
You can download the PHR5PK datasheet or visit the JST website for support.
Who is the manufacturer of PHR5PK?
JST
