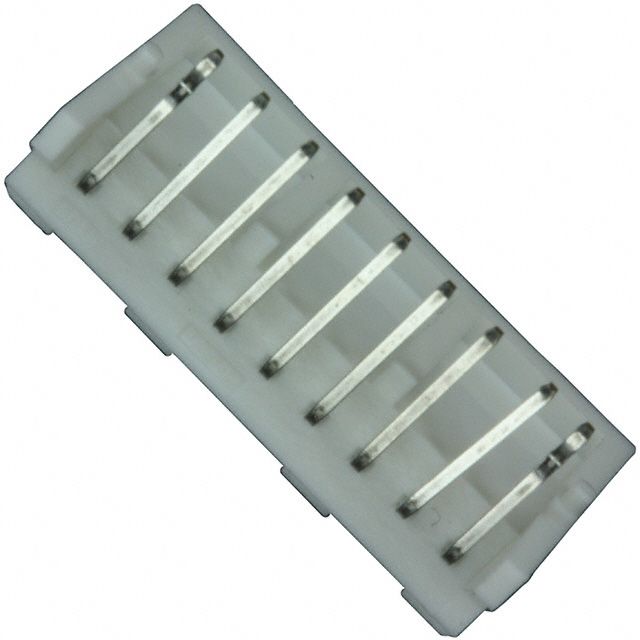

JST S09BPASK2LFSN connector header
This is a PA Series side-entry connector header with 9 positions. It features male pins arranged in a single row with a 2.0mm pitch. The connector is designed for through-hole mounting and comes in a natural color. Made with high-quality materials, it provides reliable electrical connections for various electronic applications. The header is compliant with RoHS standards, ensuring environmentally friendly components. The durable construction supports repeated mating cycles, making it suitable for industrial and consumer electronics requiring secure and stable connections.
JST S09BPASK2LFSN connector header Specifications:
- Number of positions: 9
- Pitch: 2.0mm
- Mounting: Through-hole
- Material: Post - Copper alloy, tin-plated; Housing - PA 66, UL94V-0, natural
- Color: Natural (white)
- RoHS compliant
- Working Voltage: 250V AC/DC
- Current Rating: 3A
- Temperature Range: -55°C to +85°C
- Contact Resistance: Initial 15mΩ max, After environmental testing 25mΩ max
- Insulation Resistance: 1,000MΩ min
- Withstanding Voltage: 800V AC/minute
- Applicable Wire: AWG #28 to #22
- Product displays RoHS label and complies with environmental standards
Buy the Buy JST PA Series Side-Entry Connector Header Part Number S09BPASK2LFSN Online
Purchase the JST PA series 9-position side-entry connector header online today and benefit from secure, durable connections that meet RoHS standards. Designed for reliable performance in industrial and electronics applications, it features a 2.0mm pitch, through-hole mounting, and high-quality materials. Easy to install and environmentally friendly, this connector header ensures long-lasting performance and stable electrical contact. Perfect for professional and hobbyist electronics alike, enabling quick assembly and dependable operation in complex wiring systems.
Order your JST PA series 9-position side-entry connector header S09BPASK2LFSN today and ensure robust, reliable electronic connections for your projects.
Frequently Asked Questions
Where can I buy JST S09BPASK2LFSN?
You can click on the BUY or RFQ button to purchase S09BPASK2LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S09BPASK2LFSN?
You can download the S09BPASK2LFSN datasheet or visit the JST website for support.
Who is the manufacturer of S09BPASK2LFSN?
JST
