JST S3BPHKLFSN Connector Header
This is a side-entry connector header from the PH Series with three positions, featuring a 2.00mm pitch suitable for through-hole mounting with press-fit or soldering options. It is made of high-quality materials including copper alloy with tin-plated reflow treatment, and UL94V-0 rated PA66 plastic in ivory for easy identification. Designed for reliable electrical connection, this connector supports up to 2A current and withstands 800V AC, making it ideal for high-density PCB connections in various electronic applications. Its compact size and RoHS compliance ensure suitability for a wide range of manufacturing needs.
JST S3BPHKLFSN Connector Header Specifications:
- Pitch: 2.00mm
- Number of Positions: 3
- Current Rating: 2A AC/DC
- Voltage Rating: 800V AC
- Operating Temperature Range: -25°C to +85°C
- Contact Material: Copper alloy, tin-plated (reflow treatment)
- Insulation Resistance: 1,000M ohms min.
- Contact Resistance: Initial 10mΩ max., after environmental testing 20mΩ max.
- Applicable Wire: AWG #32 to #24
- PC Board Thickness: 0.8 to 1.6mm
- Material: PA66 rated UL94V-0 (Ivory)
- RoHS Compliant
- Standards: Recognized E60389, Certified LR20812, R75087

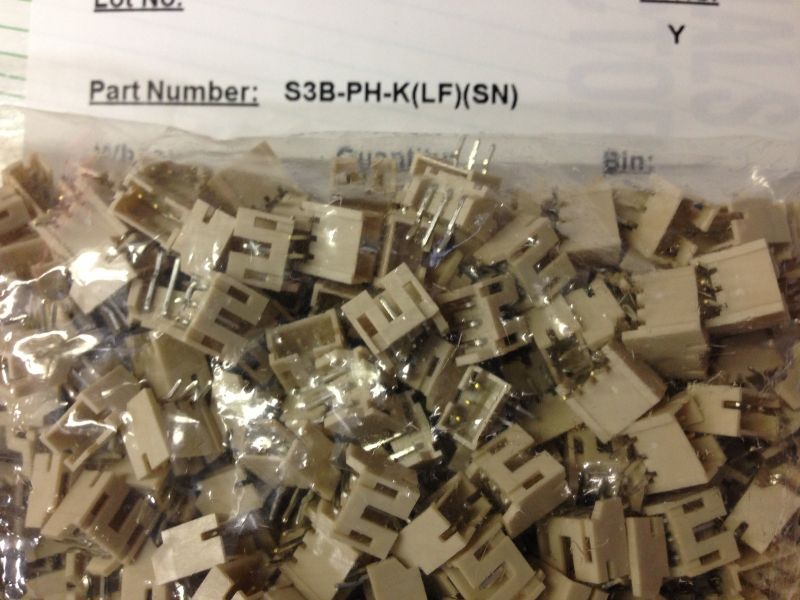

Buy the Buy JST PH Series Connector Part Number S3BPHKLFSN Online
Discover the high-quality JST PH Series side-entry connector header with three positions and 2.00mm pitch, designed for reliable PCB connections, offering easy installation and RoHS compliance. Ideal for various electronic applications, this connector supports through-hole mounting with press-fit or solder options, featuring durable copper alloy contacts with tin plating and UL94V-0 rated housing in ivory. Its compact design ensures efficient high-density connections, providing stability, safety, and excellent electrical performance. Purchase online today to benefit from fast delivery and competitive pricing.
Buy JST PH Series connector part number S3BPHKLFSN now and experience reliable, high-density PCB connections with easy mounting options in modern electronic designs.
Frequently Asked Questions
Where can I buy JST S3BPHKLFSN?
You can click on the BUY or RFQ button to purchase S3BPHKLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S3BPHKLFSN?
You can download the S3BPHKLFSN datasheet or visit the JST website for support.
Who is the manufacturer of S3BPHKLFSN?
JST
