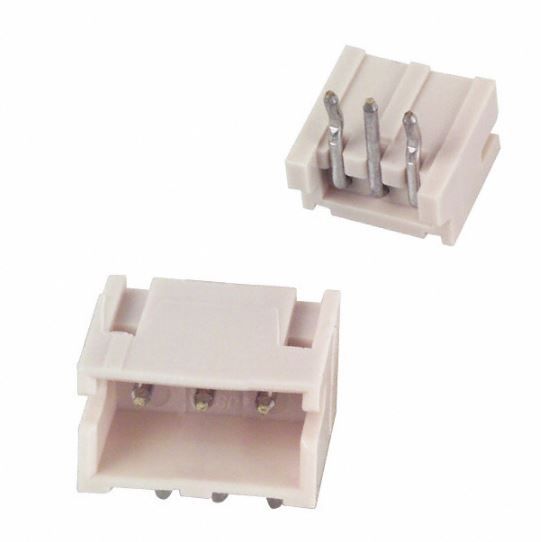

JST S3BZRLFSN 3-Position Right-Angle Header
This compact 3-position right-angle header connector from the ZH series offers reliable performance for various electronic applications. It features a 1.5mm pitch, through-hole mounting, and a maximum voltage rating of 50V. The contact is made of phosphor bronze, tin-plated for durability, and the housing is constructed with glass-filled PA 66, UL94V-0, in natural color. Its design includes housing lances for secure insertion and ensures a maximum contact resistance of 20mΩ initially and 30mΩ after environmental testing, suitable for low-current circuit connections in industrial and consumer electronics.
JST S3BZRLFSN 3-Position Right-Angle Header Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Max. 20mΩ initial, Max. 30mΩ after environmental testing
- Insulation resistance: 500MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #26
- Applicable PCB thickness: 0.6 to 1.2mm, 1.6mm
- Housing material: PA 66, glass-filled, UL94V-0, natural color
- Contact material: Phosphor bronze, tin-plated
- RoHS compliant
- Mounting type: Through-hole
- Pitch: 1.5mm
- Number of positions: 3
- Finish: Reflow tin-plated
- Standards: Recognized E60389, Certified LR20812
