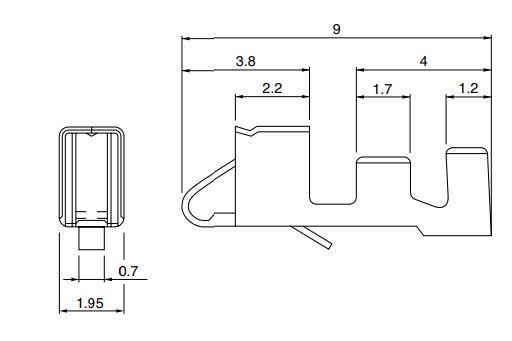

JST SHF001T08BS Terminal Socket
This terminal socket from the NH Series features a 2.5mm pitch and is designed for crimping onto wires ranging from 28 to 22 AWG, handling up to 3A current and 250V voltage. It has superior folded beam construction, double-sided contact design, and a wide, sturdy post for high reliability and long service life. Compatible with top, side, and bottom entry configurations, it ensures secure, resilient connections in diverse electronic and industrial applications, with RoHS compliance and durable tin-plated contact material.
JST SHF001T08BS Terminal Socket Specifications:
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/ 15mΩ max. After environmental testing/ 20mΩ max.
- Insulation resistance: 500MΩ min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6mm
- Housing Material: PA 6, UL94V-0, natural (white)
- Connector material: Brass, copper-undercoated, tin-plated
- RoHS compliant
- Designed for crimping onto wires, featuring a folded beam contact design for long-term reliability
Buy the JST NH Series 2.5mm – Reliable Connector for Industrial Applications
Enhance your electronic assembly with this reliable terminal socket from the NH Series, featuring a 2.5mm pitch, high current capacity of 3A, and voltage up to 250V. Compatible with wires from 28 to 22 AWG, it offers superior folded beam construction and a double-sided contact design for long-term durability and stable electrical contact. Ideal for applications demanding secure, repeated connections, this RoHS-compliant component guarantees performance and safety in various industrial, automation, and electronic systems. Purchase online today for fast delivery and trusted quality.
Order your JST NH Series 2.5mm terminal socket today and ensure secure, durable connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy JST SHF001T08BS?
You can click on the BUY or RFQ button to purchase SHF001T08BS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHF001T08BS?
You can download the SHF001T08BS datasheet or visit the JST website for support.
Who is the manufacturer of SHF001T08BS?
JST
