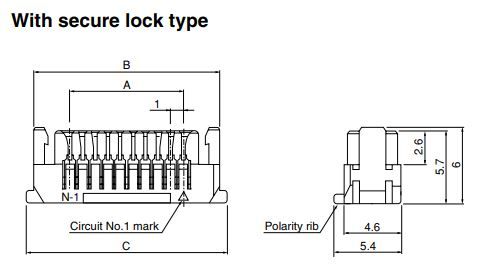

JST SHLDP40VS1 Connector Housing
The SHLD Series connector housing is designed for 40 positions, supporting a voltage of 50V. Made from natural-colored PBT, it features a secure locking mechanism, enhancing reliability and preventing deformation of contacts. Its robust construction ensures resistance against external forces, making it ideal for small electronics and LCD applications. The connector complies with RoHS standards, providing a safe and environmentally friendly solution. Suitable for PCB layouts, it simplifies replacement and upgrading processes without sacrificing performance or durability.
JST SHLDP40VS1 Connector Housing Specifications:
- Number of positions: 40
- Voltage rating: 50V AC/DC
- Current rating: 1.0A
- Material: PBT, UL94V-0, natural (white)
- Lock type: Secure locking mechanism
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/30mΩ max, after environmental testing/40mΩ max
- Insulation resistance: 100MΩ minimum
- Withstanding voltage: 500V AC/minute
- RoHS compliant
- Dimensions (mm): Length: 190, Width: 214, Height: 230
Buy the JST Series SHLD Connector Housing: SHLDP40VS1
Purchase the JST Series SHLD connector housing for 40 positions online today and enjoy high-quality, RoHS-compliant electrical connections. This durable housing features a secure locking mechanism, making assembly straightforward and ensuring contact stability. Ideal for LCDs, electronics, and PCB applications, it offers excellent resistance to external forces and temperature variations. With a natural-colored, UL94V-0 material, this connector enhances safety and compatibility across various devices. Get reliable performance and seamless replacement options by ordering now.
Order your JST Series SHLD connector housing for 40 positions today and ensure a reliable, RoHS-compliant connection for your small electronics projects.
Frequently Asked Questions
Where can I buy JST SHLDP40VS1?
You can click on the BUY or RFQ button to purchase SHLDP40VS1 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHLDP40VS1?
You can download the SHLDP40VS1 datasheet or visit the JST website for support.
Who is the manufacturer of SHLDP40VS1?
JST
