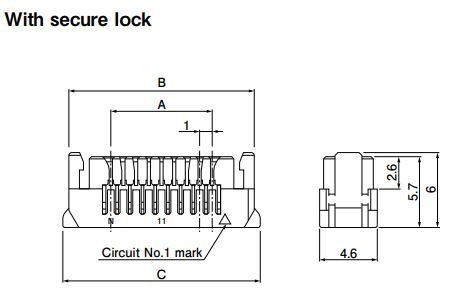

JST SHLVP21VS1 Wire-to-board connector
The SHLVP Series 21-position wire-to-board crimp connector offers a reliable and high-quality connection with a 1 mm pitch, ideal for electronic devices and PCB connections. Crafted from phosphor bronze with gold-plated contacts, it ensures excellent electrical conductivity, durability, and corrosion resistance. Suitable for various circuit configurations, this connector supports wire sizes from AWG 32 to 28, with a current rating of 1.0 A and a voltage of 30 V. Its secure locking mechanism provides stability during operation, making it perfect for compact and high-frequency electronic applications.
JST SHLVP21VS1 Wire-to-board connector Specifications:
- Pitch: 1.0 mm
- Current rating: 1.0 A AC, DC (AWG #28)
- Voltage rating: 30 V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial 30 mΩ max, after environmental tests 50 mΩ max
- Insulation resistance: 100 MΩ min
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #32 to #28, insulation O.D. 0.4 to 0.8 mm
- Material: Phosphor bronze, nickel-undercoated, gold-plated contacts
- RoHS2 compliant
- Environmental conditions: Temperature range from -25°C to +85°C
- Locking: Secure locking structure ensures stable contact during operation
Buy the JST SHLVP21VS1 – Reliable 1 mm Pitch Crimp Connector for Electronic Applications
Purchase the JST SHLVP21VS1 wire-to-board connector online today and ensure secure, high-quality electrical connections for your electronic projects. With a 1 mm pitch and gold-plated contacts, it offers excellent conductivity and durability. Supporting wire sizes from AWG 32 to 28, it is suitable for compact and high-frequency circuits with a rated current of 1.0 A and voltage of 30 V. Its secure locking mechanism guarantees stability, making it an essential component for reliable circuit interconnections in electronics manufacturing and prototyping.
Buy JST SHLVP21VS1 now and experience unmatched reliability and performance in your electronic circuit connections.
Frequently Asked Questions
Where can I buy JST SHLVP21VS1?
You can click on the BUY or RFQ button to purchase SHLVP21VS1 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHLVP21VS1?
You can download the SHLVP21VS1 datasheet or visit the JST website for support.
Who is the manufacturer of SHLVP21VS1?
JST
