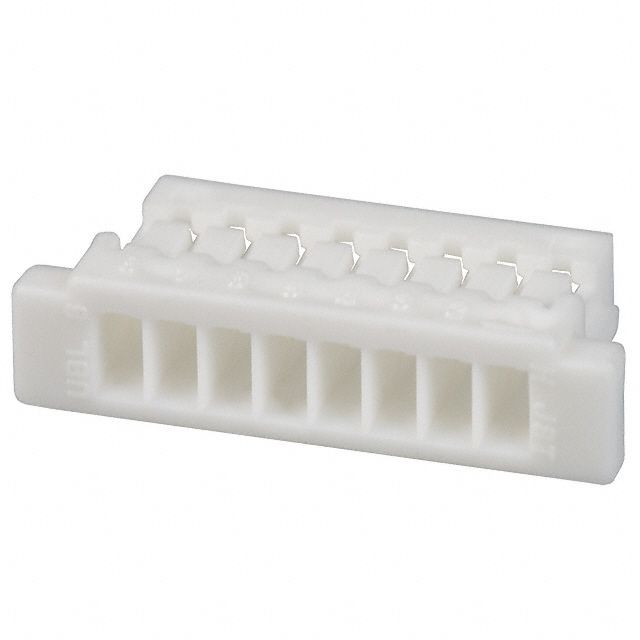

JST SHR08VSB Connector Housing
This is a connector housing from the SH series, designed with 8 positions and a 1.0mm pitch. It is a free hanging type suitable for crimp connection, in a natural color, featuring protrusions for secure assembly, compliant with RoHS standards. Made from durable PBT with UL94V-0 rating, the connector offers reliable electrical performance with contact copper alloy, tin-plated contacts, and an insulative housing. It is compatible with wire sizes AWG #28 to #32, and designed for easy mounting with top or side entry configurations. Suitable for compact electronic devices requiring secure, reliable connections.
JST SHR08VSB Connector Housing Specifications:
- Current rating: 1.0A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, environmental testing/40mΩ max
- Insulation resistance: 100MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #28, insulation OD 0.4 to 0.8mm
- Material: Phosphor bronze, tin-plated (reflow treatment)
- Housing: PBT, UL94V-0, natural
- RoHS compliance: Yes
- Mounting: Free hanging, top or side entry configurations
- Dimensions: Suitable for 1.0mm pitch, 8 positions, housing color natural, with protrusions for secure assembly
- Certifications: RoHS, UL94V-0
Buy the JST Series SH 1.0mm Pitch Connector Housing: SHR08VSB
Purchase the JST Series SH connector housing SHR08VSB online today and ensure your electronic devices have robust, reliable connections. Featuring a compact, natural-colored design with secure protrusions for assembly, this 8-position connector supports crimp connection with compatibility for wire sizes AWG #28 to #32. Manufactured with durable materials including phosphor bronze and UL94V-0 rated PBT housing, it offers excellent electrical performance and environmental resilience. Ideal for space-constrained, high-reliability applications in industrial, consumer, and communication electronics.
Buy JST Series SH 1.0mm Pitch Connector Housing SHR08VSB now and experience reliable, secure connections for your electronic applications.
Frequently Asked Questions
Where can I buy JST SHR08VSB?
You can click on the BUY or RFQ button to purchase SHR08VSB from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHR08VSB?
You can download the SHR08VSB datasheet or visit the JST website for support.
Who is the manufacturer of SHR08VSB?
JST
