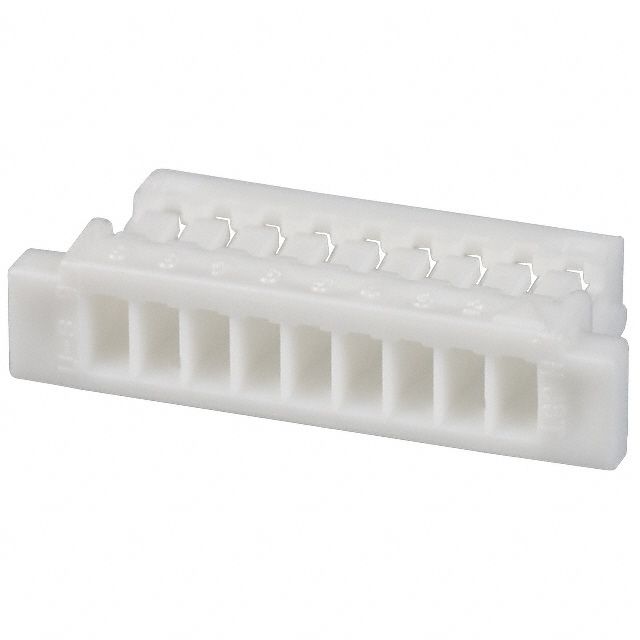

JST SHR09VSB connector housing
The SH Series 9-position connector housing is a compact, crimp-type connector with a 1.0mm pitch, designed for secure mating and reliable electrical connections. Constructed from durable PBT material with UL94V-0 flame retardance, it features protrusions for proper alignment and easy assembly. Compatible with wire sizes AWG #32 to #28, it supports current ratings up to 1.0A and voltage ratings up to 50V. Ideal for compact electronic devices requiring reliable board-to-wire connections, the connector is RoHS compliant and available in top or side entry configurations, ensuring versatile installation options.
JST SHR09VSB connector housing Specifications:
- Current rating: 1.0A AC/DC (AWG #28)
- Voltage rating: 50V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial / 20mΩ max, after testing / 40mΩ max
- Insulation resistance: 100MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #28
- Insulation O.D.: 0.4 to 0.8mm
- Material: Phosphor bronze, tin-plated; Housing: PBT UL94V-0
- RoHS compliant
- Compatible with insulation displacement connectors
- Housing includes protrusions for secure mating
- Product supports top and side entry types
- Reflow treatment for solder tab: Brass, copper-undercoated, tin-plated
