JST SM02BXSRSETBLFSN XSR connector
The XSR series 2-position connector header is designed for reliable electrical connections with a compact 0.6mm pitch. It features tin-plated copper alloy contacts, a natural UL94V-0 housing, and a strain relief structure suitable for thin wires. Rated for 30V AC/DC and 0.2A current, it supports conductor sizes up to AWG 36 with insulation O.D. of 0.29mm. Its lightweight, miniature design with a mounting height of 1.45mm makes it ideal for space-saving applications and automated ID machines, ensuring stable performance across temperatures from -25°C to +85°C.
JST SM02BXSRSETBLFSN XSR connector Specifications:
- Current rating: 0.2A AC, DC
- Voltage rating: 30V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: 30mΩ initial, 50mΩ after testing
- Insulation resistance: 100MΩ min.
- Withstanding voltage: 200V AC/minute
- Applicable wire: AWG #36, conductor: 7 strands, tin-coated copper alloy
- Conductor O.D.: 0.29mm
- Housing: PA, UL94V-0, natural
- Material: Copper alloy, tin-plated

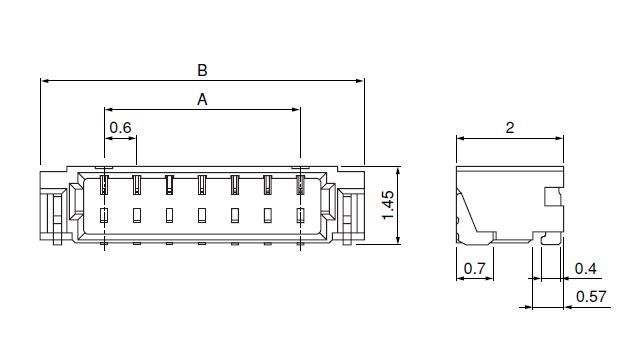

- Dimensions: Mounting height 1.45mm, depth 3.0mm
- Standards: RoHS compliant, recognized E60389, certified LR20812
Buy the JST Series XSR Miniature Connector 0.6mm Pitch: SM02BXSRSETBLFSN
Purchase the JST XSR connector online today for your electronic projects and automation systems. With a compact design, 30V/0.2A rating, and tin-plated contacts, this connector ensures reliable, efficient wiring in tight spaces. Its space-saving profile of 1.45mm mounting height makes it perfect for automated ID machines and miniature devices. Crafted with RoHS compliance and a natural housing, it supports AWG 36 wires with insulation O.D. of 0.29mm, delivering excellent electrical performance and durability for various industrial applications.
Buy JST XSR connector with 0.6mm pitch now and experience compact, reliable electrical connections ideal for space-constrained applications.
Frequently Asked Questions
Where can I buy JST SM02BXSRSETBLFSN?
You can click on the BUY or RFQ button to purchase SM02BXSRSETBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM02BXSRSETBLFSN?
You can download the SM02BXSRSETBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of SM02BXSRSETBLFSN?
JST
