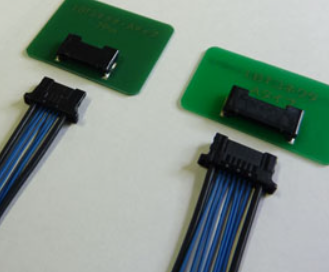

JST SM03BLBTAKSTDN2TKTBHF Header Connector
This header connector from the LBT Type A series offers reliable electrical connections with 2 power contacts and 1 signal contact, suitable for electronic applications requiring space-efficient, high-current, and robust connection solutions. It features a heat radiation structure, low profile design for space savings, and a disconnectable crimp style for easy maintenance. Made of copper alloy and phosphor bronze with tin-plated and UL94V-0 rated materials, it complies with RoHS2 standards and supports applications up to 7.0 A for power circuits and 0.5 A for signal circuits, with a voltage rating of 50 V AC/DC.
JST SM03BLBTAKSTDN2TKTBHF Header Connector Specifications:
- Current rating: Power supply circuit 7.0 A AC/DC (AWG #20), Signal circuit 0.5 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Power circuit initial value 15 mΩ max., after environmental tests 30 mΩ max.; Signal circuit initial value 20 mΩ max., after tests 40 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Power supply AWG #24 to #20, Signal AWG #28
- Insulation O.D.: Power supply 1.11–1.44 mm, Signal 0.6–0.8 mm
- Contact material: Copper alloy (power), Phosphor bronze (signal), tin-plated
- Housing: Heat resisting resin, UL94V-0, RoHS2 compliant
- Dimensions: Includes connector length and width specified for models, e.g., 3.45 mm, 5.45 mm, 7.45 mm, 9.45 mm
- Solder tab: DIP type, tin-plated, copper-undercoated
- Series: LBT Type A, supports 2 power + 1 signal circuit configurations
- Standards: Recognized E60389, RoHS2 compliant
