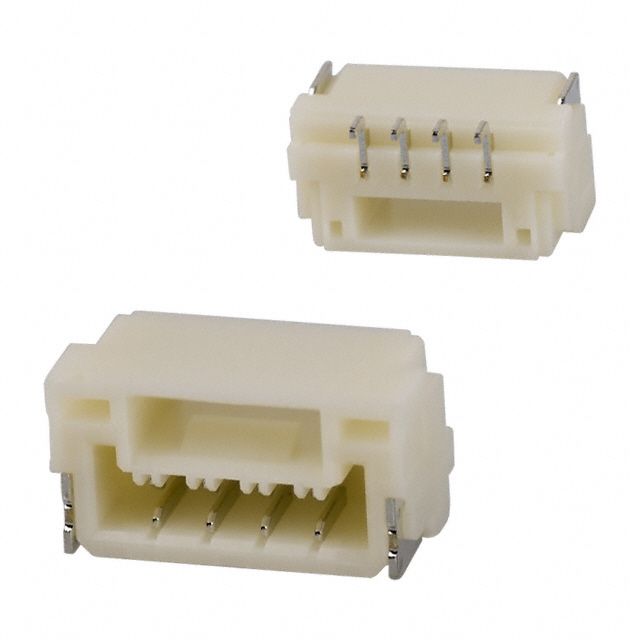

JST SM04BGHSTBLFSN Surface-Mount Connector Header
This surface-mount right-angle connector header from the GH Series features four positions with a 1.25mm pitch, suitable for 30-26 AWG wires. Designed for PCB mounting, it offers a secure locking ramp for reliable connection and withstands voltage up to 50V. Rated for 1.0A AC/DC current, it operates within -25°C to +85°C temperature range. Made from UL94V-0 PBT, it complies with RoHS standards, ensuring safety and environmental compliance. Its compact design makes it ideal for small electronics, LCD displays, and control panels, delivering dependable performance in tight spaces.
JST SM04BGHSTBLFSN Surface-Mount Connector Header Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Rated for 1.0A current with initial value/30m max, environmental testing/50m max
- Insulation resistance: 100MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #30 to #26, insulation O.D. 0.8 to 1.0mm
- Contact resistance: Low resistance for reliable connections
- Material: Phosphor bronze, tin-plated, reflow treatment
- Housing: PBT, UL94V-0, natural (ivory)
- Solder tab: Brass, copper-undercoated, tin-plated
- RoHS compliant, marked with (LF)(SN)
- Connector dimensions as per model specifications
- A: 1.25mm pitch, suitable for small electronics and LCD equipment
Buy the JST Series GH Connector: SM04BGHSTBLFSN
Purchase the JST Series GH connector, SM04BGHSTBLFSN today online and enhance your electronic assemblies with secure, compact, and RoHS-compliant connection solutions for LCDs, control panels, and embedded systems. Trusted for its durability, precise locking mechanism, and easy soldering, this connector ensures dependable performance in space-limited applications. Ideal for hobbyists and professionals alike, it provides reliable electrical contact and high-quality construction, ensuring your projects meet safety and environmental standards while providing excellent connectivity quality.
Order your JST Series GH connector, SM04BGHSTBLFSN today and ensure reliable connections for your small electronics and display projects.
