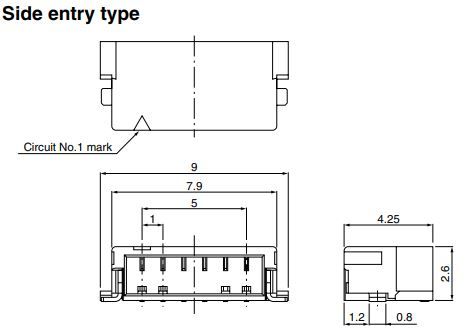

JST SM06BSHJHTFHF 6-Position Power Connector
The JST SHJ connector is a 6-position, side-entry header with a 1.0mm pitch. It features a low-profile design with a secure locking mechanism, ensuring reliable power connections in compact LED and electronic device applications. Made of phosphor bronze with tin-plated finish, the connector is halogen-free and complies with RoHS standards. It supports current ratings up to 1.0 A AC/DC and voltage of 125 VAC/DC, suitable for wire sizes from AWG #32 to #28 with insulation O.D. of 0.54 to 0.8 mm. The connector is ideal for secure, space-saving power supply connections in various electronics.
JST SM06BSHJHTFHF 6-Position Power Connector Specifications:
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 125 VAC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: initial 20 mΩ max., after tests 40 mΩ max.
- Insulation resistance: 100 MQ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #32 to #28, insulation O.D. 0.54 to 0.8 mm
- Material: Phosphor bronze, tin-plated
- Housing material: PBT (top entry), PA6T (side entry)
- RoHS compliant
Buy the JST Series SHJ 6-Position Power Connector: SM06BSHJHTFHF
Secure your electronic projects with the JST Series SHJ 6-Position Power Connector. Featuring a 1.0mm pitch, low profile design, and a secure locking mechanism, this connector provides reliable, space-saving connections for LED power supplies and compact devices. Made of durable phosphor bronze and halogen-free, it is RoHS compliant and suitable for wire sizes from AWG #32 to #28. Easy to install, this connector ensures safety, stability, and optimal electrical performance for various applications—order online today for quick, dependable delivery.
Order your JST Series SHJ 6-Position Power Connector SM06BSHJHTFHF today and secure reliable power connections in your compact electronic projects.
Frequently Asked Questions
Where can I buy JST SM06BSHJHTFHF?
You can click on the BUY or RFQ button to purchase SM06BSHJHTFHF from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM06BSHJHTFHF?
You can download the SM06BSHJHTFHF datasheet or visit the JST website for support.
Who is the manufacturer of SM06BSHJHTFHF?
JST
