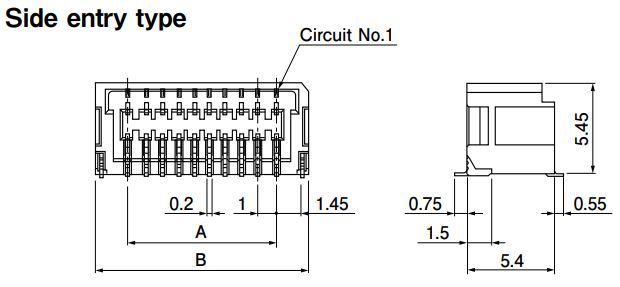

JST SM40BSHLDSGTFLFSN Right-angle Connector Header
The surface mount right-angle connector header with 40 positions features a 1.00 mm pitch, designed for small electronic equipment such as LCDs and PDPs. Made from PBT with UL94V-0 flammability rating, it offers high durability with a secure locking mechanism to prevent contact deformation and withstand external force. The contact material is gold-plated phosphor bronze, ensuring reliable electrical connectivity and corrosion resistance. It complies with RoHS standards, supports a current rating of 1.0A, and is suitable for applications requiring compact and secure connections in miniature electronic devices.
JST SM40BSHLDSGTFLFSN Right-angle Connector Header Specifications:
- Number of circuits: 40
- Pitch: 1.00 mm
- Material: PBT, UL94V-0, natural (white)
- Contact Material: Phosphor bronze, nickel-undercoated, gold-plated
- Water: PA, UL94V-0, natural (ivory)
- Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)
- Current rating: 1.0A AC/DC
- Voltage rating: 50V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial / 30mΩ max, after environmental testing / 40mΩ max
- Insulation resistance: 100MΩ min
- Withstanding voltage: 500V AC/minute
- RoHS compliant
- Standards: Recognized E60389
Buy the JST Series SHLD Connectors: SM40BSHLDSGTFLFSN
Order the JST right-angle connector header with 40 positions today to ensure a compact, secure, and reliable electrical connection for small electronics. Crafted from UL94V-0 rated PBT and featuring gold-plated phosphor bronze contacts, it guarantees long-lasting durability and excellent conductivity. Ideal for LCD, PDP, and other compact electronic devices, this RoHS-compliant connector supports a 1.00 mm pitch, withstands operational temperatures from -25°C to +85°C, and is suitable for high-quality manufacturing requirements. Enhance your device assembly with this dependable connector now.
Get JST SM40BSHLDSGTFLFSN connector today—built for reliability and secure electronic connections in miniature devices.
Frequently Asked Questions
Where can I buy JST SM40BSHLDSGTFLFSN?
You can click on the BUY or RFQ button to purchase SM40BSHLDSGTFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM40BSHLDSGTFLFSN?
You can download the SM40BSHLDSGTFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of SM40BSHLDSGTFLFSN?
JST
