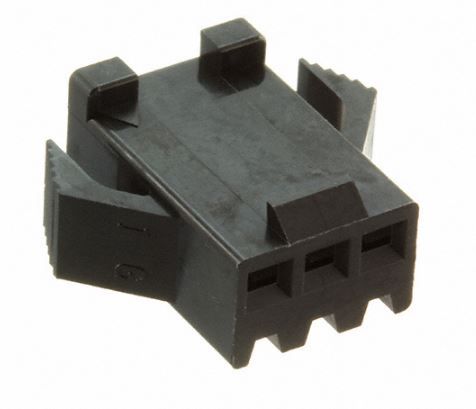

JST SMP03VBC Wire-to-Wire Connector Housing
This 3-position connector housing from the SM series features a 2.5mm pitch, designed for reliable panel mounting with a snap-in lock. It includes a locking ramp for secure connections, ensuring high-density, small current applications. Made of durable PA 6 material, it complies with RoHS standards and is suitable for various electronic projects requiring compact and secure wire-to-wire connections. The housing supports up to 3A current and 250V voltage ratings, with dimensions optimized for easy installation and dependable performance in embedded systems and circuit board assemblies.
JST SMP03VBC Wire-to-Wire Connector Housing Specifications:
- Pitch: 2.5mm
- Current Rating: 3A
- Voltage Rating: 250V
- Material: PA 6, UL94V-0
- Color: Black
- Mounting: Panel mount with snap-in mechanism
- Locking: Locking ramp for secure connection
- Applicable Wire: AWG #28 to #22, 0.08 to 0.33mm
- Applicable Panel Thickness: 0.5 to 2.0mm
- Temperature Range: -25°C to +85°C
- RoHS compliant
Buy the JST Series SM 2.5mm Connector Housing: SMP03VBC
Purchase the JST Series SM 2.5mm connector housing SMP03VBC online today to enjoy dependable performance, easy panel mounting, and excellent electrical stability. Crafted from durable, RoHS-compliant PA 6 material, it features a locking ramp and snap-in design for secure, high-density connections. Ideal for small current applications up to 3A and 250V, this housing provides precise fit and reliable performance in compact electronic devices and circuit boards. Secure your electronics with this high-quality, easy-to-install connector housing available now online.
Order your JST Series SM 2.5mm connector housing SMP03VBC today and ensure secure, reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST SMP03VBC?
You can click on the BUY or RFQ button to purchase SMP03VBC from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SMP03VBC?
You can download the SMP03VBC datasheet or visit the JST website for support.
Who is the manufacturer of SMP03VBC?
JST
