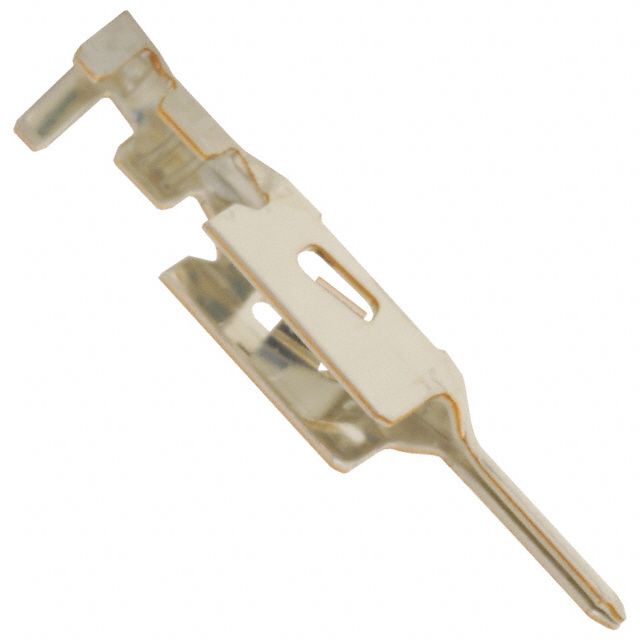

JST SPAL001TP05 Crimp Terminal Pin
This is a crimp terminal pin designed for 26-22 AWG wire sizes. It features a 1 to 1.5 mm outer diameter and is tin-plated to ensure corrosion resistance and reliable electrical contact.
JST SPAL001TP05 Crimp Terminal Pin Specifications:
- Applicable wire: AWG #26 to #22
- Wire outer diameter: 0.13~0.33mm
- Contact Material: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliant
- Reel quantity: 8,000 pieces
- Applications: Crimping for electrical connections in wire harnesses
- Temperature range: -55°C to +105°C
- Voltage Rating: 600 V
- Insulation Resistance: 1,000 MΩ min.
- Contact Resistance: 10 mΩ max. (initial), 20 mΩ max. (env. tested)
- Certifications: UL Recognized (E60389)
Buy the JST Series Crimp Terminal Pin: SPAL001TP05
Experience secure and reliable electrical connections with the JST crimp terminal pin. Designed for 26-22 AWG wire sizes, it features tin-plated contact material for corrosion resistance. Easy to crimp with compatible applicators, it ensures consistent contact resistance and insulation resistance for safety and durability. Suitable for wire harness assembly, this terminal meets RoHS compliance standards and is available in high quantities for large projects. Purchase online today to enhance your wiring reliability and streamline your assembly process.
Buy JST SPAL001TP05 crimp terminal pin now and ensure secure, corrosion-resistant electrical connections in your wiring projects.
Frequently Asked Questions
Where can I buy JST SPAL001TP05?
You can click on the BUY or RFQ button to purchase SPAL001TP05 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SPAL001TP05?
You can download the SPAL001TP05 datasheet or visit the JST website for support.
Who is the manufacturer of SPAL001TP05?
JST
