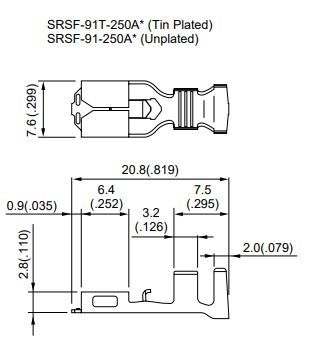

JST SRSF91T250A Wire Terminal Contact
This terminal contact is designed for wire sizes ranging from 14 to 12 AWG. It features a secure locking mechanism, easy insertion, and a 3.0 to 3.9 mm outer diameter. The contact is tin-plated to ensure reliable conductivity and corrosion resistance.
JST SRSF91T250A Wire Terminal Contact Specifications:
- Current rating: 20A AC, DC max.
- Voltage rating: 250V AC, DC max.
- Temperature range: -40°C to +105°C
- Contact resistance: 3mΩ max. initially, 6mΩ after testing
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 2,000V AC/minute
- Applicable wire: #14 to #12 AWG
- Outer diameter: 3.0 to 3.9 mm
- Material: Tin-plated Brass
- Finish: Tin Plated
- Part Number: SRSF91T250A
Buy the Buy JST SRSF91T250A Part Number SRSF91T250A Online
Purchase the JST SRSF91T250A terminal contact online today. Designed for 14-12 AWG wires, it features a secure locking mechanism, easy insertion, and corrosion-resistant tin plating. This high-quality contact ensures stable electrical performance, reliable connectivity, and long-lasting durability even under high current conditions. Perfect for various electrical assemblies, it guarantees safety and efficiency throughout its operational life. Order now and enjoy fast, secure online delivery of superior termination components.
Get JST SRSF91T250A today—built for reliable connectivity and corrosion resistance for high-current wiring.
Frequently Asked Questions
Where can I buy JST SRSF91T250A?
You can click on the BUY or RFQ button to purchase SRSF91T250A from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SRSF91T250A?
You can download the SRSF91T250A datasheet or visit the JST website for support.
Who is the manufacturer of SRSF91T250A?
JST
