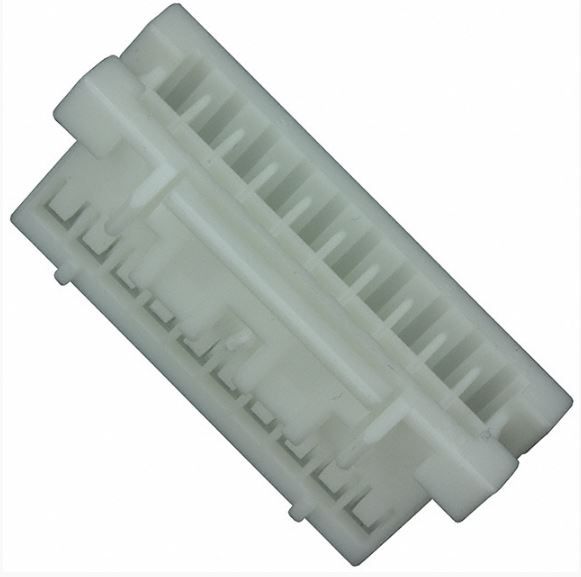

JST XADRP20V Connector housing
This 20-position connector housing from the XAD Series features a 2.5mm pitch, designed for free-hanging applications with a crimp terminal connection and a secure latch lock. Made from durable natural (white) plastic, it offers reliable connection integrity. The connector supports circuits from 8 to 40, with various configurations available. Crafted with copper alloy contacts that are tin-plated, it ensures excellent electrical conductivity and corrosion resistance. Its RoHS compliance guarantees eco-friendly manufacturing, making it ideal for industrial, automation, and electronic projects requiring secure, compact connections.
JST XADRP20V Connector housing Specifications:
- Current rating: 3A AC, DC (AWG #20)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/10m @ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: AWG #28 to #20
- Applicable PC board thickness: 1.6mm
- Material: Phosphor bronze, tin-plated (reflow treatment)
- Housing material: Natural (white) PA 66, UL94V-0
- RoHS compliant
- Locking mechanism: latch lock for secure mating
- Design: Double-row, top entry type, 2.5mm pitch
- Part number: XADRP20V
- Physical dimensions: Length varies according to configuration, typical size approximately 39.7mm in length
Buy the Buy JST XADRP20V Part Number 20-Position Connector Housing Online
Purchase the JST XADRP20V connector housing online today to ensure your electronic projects benefit from a high-quality, durable connection solution. Featuring a 2.5mm pitch, it supports multiple circuit configurations from 8 to 40 circuits, with a secure latch lock for dependable mating. Made from natural (white) plastic, it is RoHS compliant and designed for free-hanging applications. Suitable for industrial, automation, and electronics applications, this connector housing offers reliable electrical performance and ease of installation, making it a trusted choice for professionals and hobbyists alike.
Order your JST SeriesXADRP20V connector housing today and secure reliable, space-efficient electronic connections for your projects.
Frequently Asked Questions
Where can I buy JST XADRP20V?
You can click on the BUY or RFQ button to purchase XADRP20V from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part XADRP20V?
You can download the XADRP20V datasheet or visit the JST website for support.
Who is the manufacturer of XADRP20V?
JST
