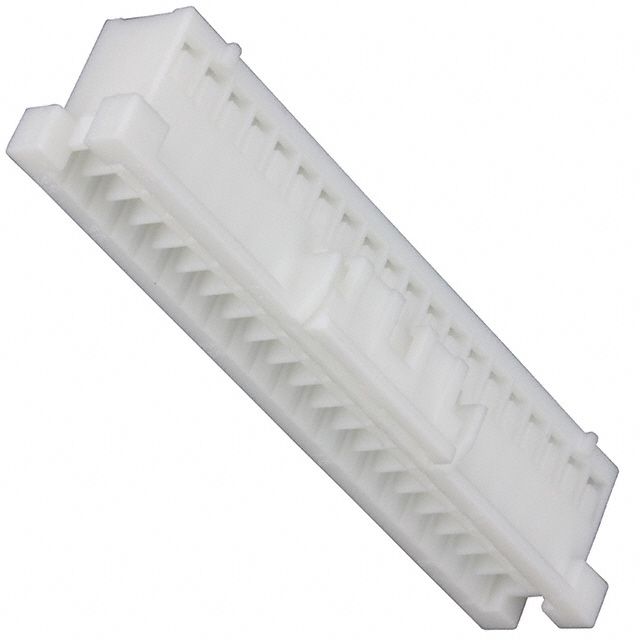

JST XADRP40V Connector Housing
This XAD Series connector housing with 40 positions is designed for efficient wire-to-board connections featuring a 2.50mm pitch. It has a free-hanging design with crimp contacts and a latch lock mechanism for reliable connection. Made from UL94V-0 rated natural (white) PA 66 material, it ensures durability and compliance with RoHS standards. Compatible with applications requiring up to 475V and wire sizes from AWG 28 to 20, it provides robust electrical performance and easy assembly for electronic devices and control systems.
JST XADRP40V Connector Housing Specifications:
- Current rating: 3A AC, DC (AWG #20)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10m @ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: AWG #28 to #20
- Applicable PC board thickness: 1.6mm
- Material: PA 66, UL94V-0, natural (white)
- RoHS compliant
- Connector configuration: 40 positions
- Pitch: 2.50mm
- Locking mechanism: latch lock
- Housing color: natural (white)
- Design: wire-to-board, free-hanging
Buy the JST XAD Series 40V – Reliable Connector Housing for Industrial Applications
Discover the high-quality JST XAD Series 40V connector housing designed for secure wire-to-board connections. With a 2.50mm pitch, latch lock mechanism, and RoHS compliance, it ensures reliable electrical connections in industrial, electronic, and control applications. Made from flame-retardant UL94V-0 rated material, it supports up to 475V and wire sizes from AWG 28 to 20. Easy to install and highly durable, this connector housing is perfect for a wide range of electronic devices and systems requiring robust, safe, and compliant connections.
Buy JST XAD Series 40V connector housing now and experience unmatched reliability and performance in electronic assembly and control systems.
Frequently Asked Questions
Where can I buy JST XADRP40V?
You can click on the BUY or RFQ button to purchase XADRP40V from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part XADRP40V?
You can download the XADRP40V datasheet or visit the JST website for support.
Who is the manufacturer of XADRP40V?
JST
