JST XAP02V1YYELLOW Connector Housing
This 2.5mm pitch connector housing from the XA1 series offers reliable performance for secure electronic connections. Designed for two positions with a latch lock mechanism, it ensures easy assembly and stable connection. Suitable for application with AWG #28 to #20 wires, the housing is compatible with automatic mounting and features RoHS compliance. Its yellow color makes identification easier, while the sturdy construction provides durability in various environments, making it ideal for electronic and industrial projects requiring compact, dependable connectors.
JST XAP02V1YYELLOW Connector Housing Specifications:
- Pitch: 2.5 mm
- Number of positions: 2
- Color: Yellow
- Wire range: AWG #28 to #20
- Material: Polyamide (PA), UL94V-0, natural (white)
- Reflow treated copper alloy contacts, tin-plated
- RoHS compliance
- Applicable for automatic board mounting

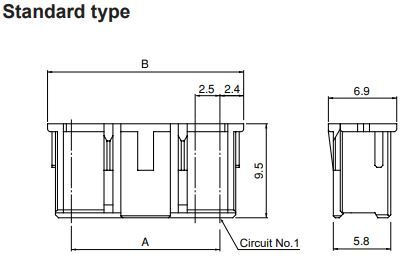

- Dimensions: Refer to model-specific size chart
- Contact resistance: Initial value/10mΩ max
- Insulation resistance: ≥1,000 MΩ
- Withstanding voltage: 1,000V AC/minute
- Temperature range: -25°C to +85°C
- Locking mechanism: Latch lock for secure connection
Buy the JST Series XA1 Connector Housing: XAP02V1YYELLOW
Enhance your electronic assemblies with this JST Series XA1 connector housing. Featuring a 2.5mm pitch and dual positions, it offers secure locking with a latch mechanism. Suitable for wires from AWG #28 to #20, the housing's yellow color makes it easy to identify. Made of UL94V-0 rated polyamide, it ensures safety and durability. Compatible with automatic mounting, this connector provides reliable, vibration-resistant performance in compact spaces. Perfect for industrial, electronic, and automation projects requiring dependable connections.
Order your JST Series XA1 connector housing XAP02V1YYELLOW today and ensure secure, reliable connections for your electronic projects with easy installation and high durability.
Frequently Asked Questions
Where can I buy JST XAP02V1YYELLOW?
You can click on the BUY or RFQ button to purchase XAP02V1YYELLOW from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part XAP02V1YYELLOW?
You can download the XAP02V1YYELLOW datasheet or visit the JST website for support.
Who is the manufacturer of XAP02V1YYELLOW?
JST
