JST XARP08VWGT4 Electrical Connector Housing

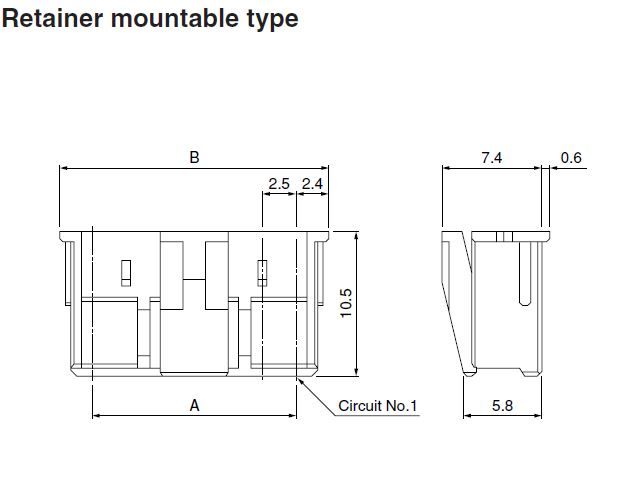

This plug housing component from the XA Series features a retainer mount type, supporting a 2.5mm pitch and rated for 250V. Made from UL94V-0 rated PA 66 material, it is natural (white) and RoHS compliant, ensuring safety and environmental standards. Suitable for secure electronic connections, it incorporates features like secure locking and compatibility with glow wire test standards. The housing provides easy assembly with a low insertion force, polarizing boss, and versatile mounting options including top entry and side entry types. Its durable design supports reliable, vibration-resistant connections in various electrical applications.
JST XARP08VWGT4 Electrical Connector Housing Specifications:
- Rated voltage: 250V AC/DC
- Rated current: 3A (AWG #22, #20)
- Temperature range: -25°C to +105°C
- Contact resistance: Initial/10m max, after testing/20m max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: AWG #28 to #20
- Material: PA 66/6, UL94V-0, natural (white)
- RoHS compliant
- Dimensions vary with model, typical length options include 25mm, 50mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mm, 225mm, 250mm, 275mm, 350mm
- Housing features: Secure locking, polarizing boss, low insertion force, compatibility with glow wire test
- Mounting options: Top entry and side entry types with or without a boss
Buy the Buy JST XA Series Plug Housing Part Number XARP08VWGT4 Online
Discover the JST XA Series plug housing with a 2.5mm pitch, rated for 250V, made from UL94V-0 material. Designed for secure and vibration-resistant connections, it features easy assembly, low insertion force, and compliance with glow wire test standards. Available in white, with secure locking, polarizing boss, and optional mounting configurations including top entry and side entry types. Perfect for advanced electronic assemblies requiring reliable, long-lasting contact solutions for various industrial and consumer electronics.
Buy JST XA Series plug housing XARP08VWGT4 now and experience reliable, secure electrical connections with low insertion force and verified safety features.
Frequently Asked Questions
Where can I buy JST XARP08VWGT4?
You can click on the BUY or RFQ button to purchase XARP08VWGT4 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part XARP08VWGT4?
You can download the XARP08VWGT4 datasheet or visit the JST website for support.
Who is the manufacturer of XARP08VWGT4?
JST
