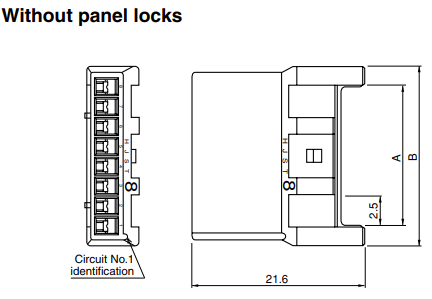

JST XARR08VF Wire-to-Wire Connector
This is a 8-position connector housing for crimp terminals, designed for wire sizes up to 2.5 mm². It is used to assemble secure and reliable electrical connections in various electronic and industrial applications.
JST XARR08VF Wire-to-Wire Connector Specifications:
- Current rating: 3A AC, DC max.
- Voltage rating: 250V AC, DC max.
- Temperature range: -25°C to +85°C (including temperature rise during operation)
- Applicable wire: AWG #28 to #20
- Material: Phosphor bronze, tinplate, RoHS compliant
- Insulation Resistance: 500MΩ min.
- Contact Resistance: Initial/10mΩ max., after environmental testing/20mΩ max.
- Withstanding Voltage: 1,500V AC/minute
- Dimensions: Length varies with model, typical length approx. 25 mm to 35 mm, width approx. 7.3 mm to 20 mm
- RoHS compliant and recognized to standards
- Compatible with crimping tools and specific applicators for reliable assembly
Buy the Buy JST XA Connector Part Number XARR08VF Online
Purchase the JST XA connector XARR08VF online to ensure reliable, secure electrical connections in industrial automation, electronics, and wiring projects. Featuring a 2.5 mm pitch, it offers excellent durability, easy installation, and RoHS compliance. Its rugged design supports current up to 3A and voltage up to 250V, making it suitable for various environmental conditions. Designed for crimp terminals, this connector guarantees seamless assembly and high-performance operation for professional applications. Buy now for long-lasting, high-quality connectivity.
Get JST XA Connector XARR08VF today—designed for secure and durable electrical connections with 2.5 mm pitch and easy panel mounting.
Frequently Asked Questions
Where can I buy JST XARR08VF?
You can click on the BUY or RFQ button to purchase XARR08VF from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part XARR08VF?
You can download the XARR08VF datasheet or visit the JST website for support.
Who is the manufacturer of XARR08VF?
JST
