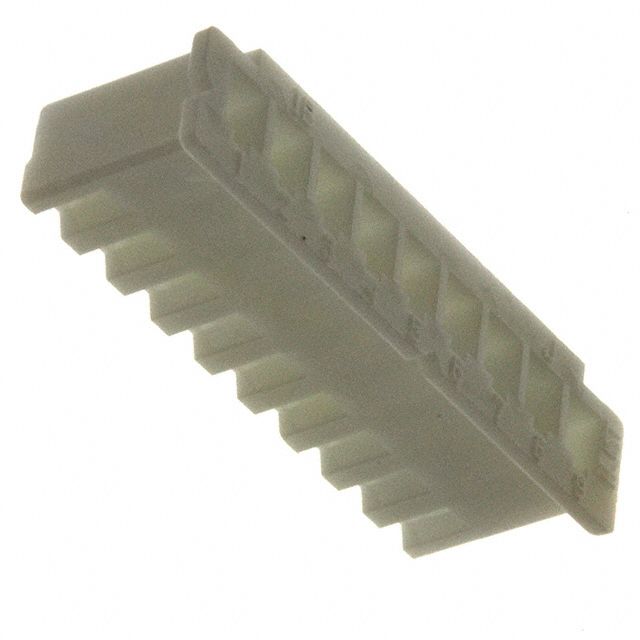

JST XHP9 Connector Housing
This 2.50mm pitch connector housing belongs to the XH series, supporting up to 9 positions. It is rated for 250V, compatible with wire ranges from AWG 30 to 22, and features durable construction with tin-plated post and glass-filled nylon wafer. Suitable for in-line applications, the natural-colored housing ensures reliable electrical connections in compact electronic assemblies. Its design emphasizes ease of crimping and environmental compliance, making it ideal for industrial and consumer electronics requiring high reliability and RoHS adherence.
JST XHP9 Connector Housing Specifications:
- Pitch: 2.50mm
- Number of Positions: 9
- Voltage Rating: 250V AC/DC
- Wire Range: AWG #30 to #22
- Applicable PC Board Thickness: 1.6mm
- Contact Material: Phosphor bronze, tin-plated
- Post Material: Brass, copper-undercoated, tin-plated
- Wafer Material: Glass-filled PA 66, UL94V-0
- Operating Temperature: -25°C to +85°C
- Insulation Resistance: 1,000MΩ min
- Withstanding Voltage: 1,000V AC/minute
- RoHS compliant
Buy the JST Series XHConnector: B9B-XH-2-00
Discover the high-quality JST XH connector housing designed for 9-position, 2.50mm pitch applications. Rated for 250V with compatible wire ranges from AWG 30 to 22, it features durable tin-plated contacts and glass-filled nylon insulation. Suitable for in-line and circuit board assembly, it offers easy crimping, RoHS compliance, and reliable performance in various electronics. Perfect for compact designs in industrial, consumer, or professional electronics, ensuring safety and high electrical standards. Buy online today for quick delivery and excellent quality assurance.
Order your JST Series XH connector housing with 9 positions and 2.50mm pitch today and ensure reliable, compact connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST XHP9?
You can click on the BUY or RFQ button to purchase XHP9 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part XHP9?
You can download the XHP9 datasheet or visit the JST website for support.
Who is the manufacturer of XHP9?
JST
