JST ZHR12 connector housing

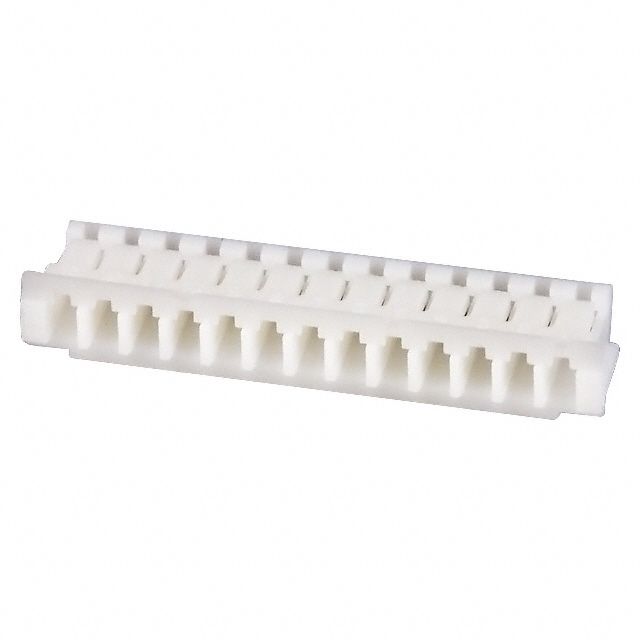

This is a ZH Series 12-position connector housing, designed for 1.50mm pitch with a maximum wire gauge of 26 AWG. It features a compact, low profile, with housing lances for secure insertion and a center dimple for reliable contact. Constructed with phosphor bronze, tin-plated, it offers durability and resistance to distortion. Suitable for crimping, it supports applications rated up to 50V and 1.0A, accommodating AWG #26 wires. The housing is RoHS compliant, compatible with various PCB thicknesses, and ideal for space-constrained electronic projects requiring reliable electrical connections.
JST ZHR12 connector housing Specifications:
- Pitch: 1.50mm
- Number of circuits: 12
- Maximum wire gauge: AWG #26
- Current rating: 1.0A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20m max. After environmental testing/30mΩ max.
- Insulation resistance: 500MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #26
- Applicable PCB thickness: 0.6 to 1.2mm, 1.6mm
- Housing material: Phosphor bronze, tin-plated
- RoHS compliant
- Rated Voltage: 50V
- Rated Current: 1.0A
Buy the JST ZH Series 12 – Reliable Connector Housing for Industrial Applications
Purchase the JST ZH12 connector housing online today for your space-saving electronic assembly needs. Designed for 1.50mm pitch, it offers reliable electrical connections rated up to 50V and 1.0A. Its robust construction with phosphor bronze, tin-plated for corrosion resistance, ensures durability in various environmental conditions. Compatible with AWG #26 wires and suitable for PCB thicknesses from 0.6 to 1.6mm, this connector housing is RoHS compliant and ideal for applications demanding compactness and reliability. Secure your inventory now and optimize your electronic designs.
Order your JST ZH12 connector housing today and ensure reliable, space-efficient connections for your electronic projects with high durability and RoHS compliance.
Frequently Asked Questions
Where can I buy JST ZHR12?
You can click on the BUY or RFQ button to purchase ZHR12 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part ZHR12?
You can download the ZHR12 datasheet or visit the JST website for support.
Who is the manufacturer of ZHR12?
JST
