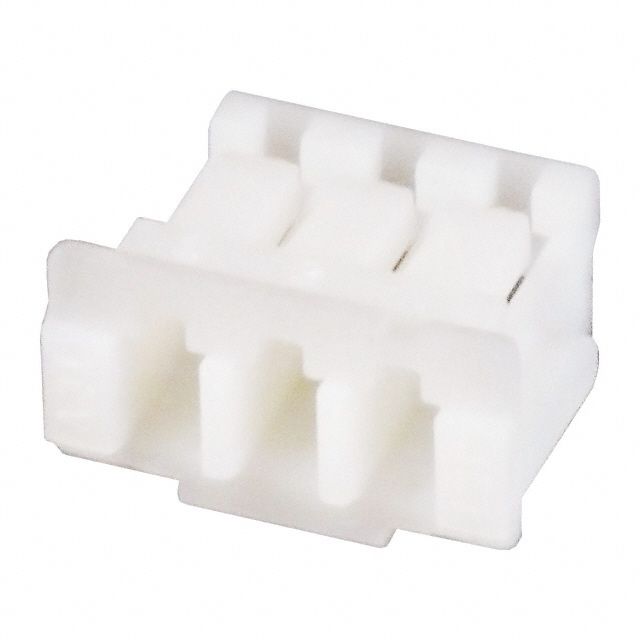

JST ZHR3 connector housing
This compact ZH Series connector housing with three positions is designed for 1.50mm pitch applications, supporting wires from AWG #32 to #26. Rated for 50V and capable of handling currents up to 1.0A, it features a natural (ivory) finish and supports a wide range of PC board thicknesses. Its lightweight, low-profile design includes reliable crimp-type contacts with phosphor bronze, tin-plated for corrosion resistance. Suitable for free-hanging, low-voltage industrial connections, it offers easy insertion with contact retention lances and a center dimple for secure contact with the post.
JST ZHR3 connector housing Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20m max., after environmental testing/30mΩ max.
- Insulation resistance: 500MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #26
- Applicable PC board thickness: 0.6 to 1.2mm, 1.6mm
- Material: Phosphor bronze, tin-plated (reflow treatment)
- Housing color: Natural (ivory)
- RoHS compliant
- Mounting type: Free-hanging/disconnectable crimp style
Buy the JST ZH Series – Reliable 3-Position Connector Housing for Industrial Applications
Discover the dependable ZH Series connector housing designed for efficient and secure low-voltage connections in industrial environments. This high-quality, compact device supports wires from AWG 32 to 26, rated for 50V and 1.0A, ensuring safe and reliable electrical contact. Its natural finish enhances durability, while the easy-to-insert design simplifies assembly. Ideal for free-hanging configurations, this connector housing offers exceptional contact retention and corrosion resistance, making it a smart choice for engineers seeking a durable and efficient connection component.
Order your JST ZH Series ZHR3 connector housing today and secure a reliable, low-profile connection solution suitable for diverse industrial projects.
Frequently Asked Questions
Where can I buy JST ZHR3?
You can click on the BUY or RFQ button to purchase ZHR3 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part ZHR3?
You can download the ZHR3 datasheet or visit the JST website for support.
Who is the manufacturer of ZHR3?
JST
