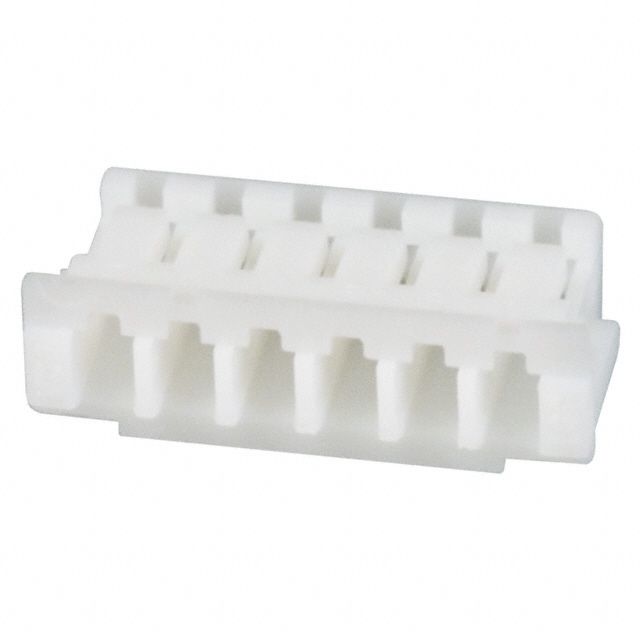

JST ZHR6 Low Profile Connector Housing
A compact, 6-position connector housing from the ZH Series designed for reliable and easy mounting in electronic assemblies. It features a low profile height of 5.6mm and a thickness of 3.5mm, with contact retention lances to facilitate insertion. The connector uses a 1.5mm pitch and supports crimping with AWG #32 to #26 wires, rated for 50V AC/DC and 1.0A current. Made of phosphor bronze with tin plating, it offers distortion-resistant construction and compatibility with ZR insulation displacement connectors. Ideal for space-constrained electronic modules requiring durable, RoHS-compliant connectors.
JST ZHR6 Low Profile Connector Housing Specifications:
- Contact Material: Phosphor bronze, tin-plated
- Color: Natural
- Number of Positions: 6
- Pitch: 1.5mm
- Current Rating: 1.0A AC/DC
- Voltage Rating: 50V AC/DC
- Temperature Range: -25°C to +85°C
- Applicable Wire Range: AWG #32 to #26
- Board Thickness Compatibility: 0.6mm to 1.2mm, 1.6mm
- Contact Resistance: Initial/20mΩ max, Environmental/30mΩ max
- Insulation Resistance: 500MΩ min
- Withstanding Voltage: 500V AC/minute
- RoHS Compliant
- Suitable for crimping with 1.50mm pitch connectors
Buy the JST Series ZH Connector: ZHR6 Low Profile Connector Housing
Discover the compact and versatile JST Series ZHR6 connector housing designed for space-constrained electronic assemblies. Its low profile of 5.6mm height and 3.5mm thickness make it ideal for tight spaces. Engineered with high-quality phosphor bronze contacts, tin-plated for durability, it supports a rated current of 1.0A and 50V AC/DC. Compatible with wire sizes AWG #32 to #26 and suitable for crimping with 1.5mm pitch connectors, this RoHS-compliant connector ensures reliable, distortion-resistant connections for various electronic applications.
Order your JST Series ZHR6 low-profile connector housing today and ensure space-efficient, reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST ZHR6?
You can click on the BUY or RFQ button to purchase ZHR6 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part ZHR6?
You can download the ZHR6 datasheet or visit the JST website for support.
Who is the manufacturer of ZHR6?
JST
