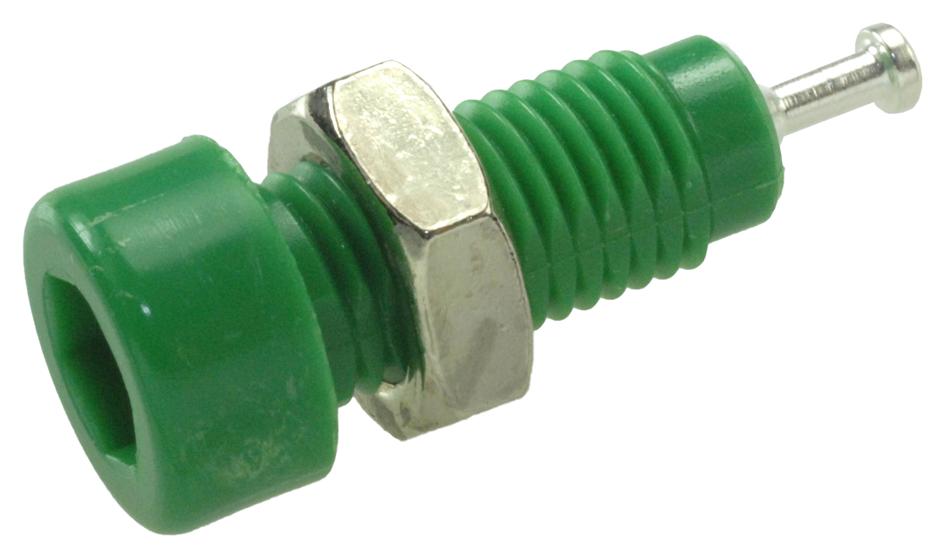

Johnson-Cinch Connectivity Solutions 1050604001 Tip Jack
The insulated standard tip jack is crafted from durable nylon 6/6 and features a machined contact with turret terminal for secure connections. It includes a silver-plated brass contact and a wrap-around beryllium copper spring, ensuring reliable conductivity. The jack is equipped with a hex socket head screw measuring 0.188 inches (4.77 mm) for easy mounting and has a closed entry design to prevent probe access larger than 0.085 inches (2.16 mm). UL-approved nylon enhances safety, with contact resistance less than 0.01 ohms and a nominal capacitance of 2 pF, making it ideal for test, measurement, and industrial use.
Johnson-Cinch Connectivity Solutions 1050604001 Tip Jack Specifications:
- Material: Nylon 6/6, UL approved for self-extinguishing
- Contact Material: Silver-plated brass
- Contact Resistance: 0.010 ohms maximum
- Breakdown Voltage: 5700 Vrms minimum
- Body Thread Stripping Torque: 0.4 Ib. in (4.5 kg. cm.)
- Panel Thickness: Up to 0.437 inches (11.10 mm)
- Mounting Hole Diameter: 0.080 inches (2.00 mm)
- Hex Socket Head Size: 0.188 inches (4.77 mm)
- Capacitance: 2 pF nominal
- Hardware: Nickel-plated nut (unassembled)
- Finish: Silver plating
- Current Rating: 10 amps
Buy the Cinch Connectivity Series Tip Jack: 1050604001
Purchase the Cinch Connectivity Tip Jack 1050604001 online to experience superior performance and safety. Designed with a nylon body, machined contact, and robust mounting features, this connector ensures secure and reliable electrical connections for test and measurement applications. Its UL-approved self-extinguishing nylon, silver-plated brass contact, and closed entry ensure safety and durability. Ideal for industrial environments, this connector supports up to 10 amps and features a low contact resistance of 0.01 ohms. Order now for quality, safety, and quick delivery.
Get Cinch Connectivity Tip Jack 1050604001 today—built for reliable connections and safety in industrial testing and measurement.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050604001?
You can click on the BUY or RFQ button to purchase 1050604001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050604001?
You can download the 1050604001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050604001?
Johnson-Cinch Connectivity Solutions
