Johnson-Cinch Connectivity Solutions 1050610001 Test Jack

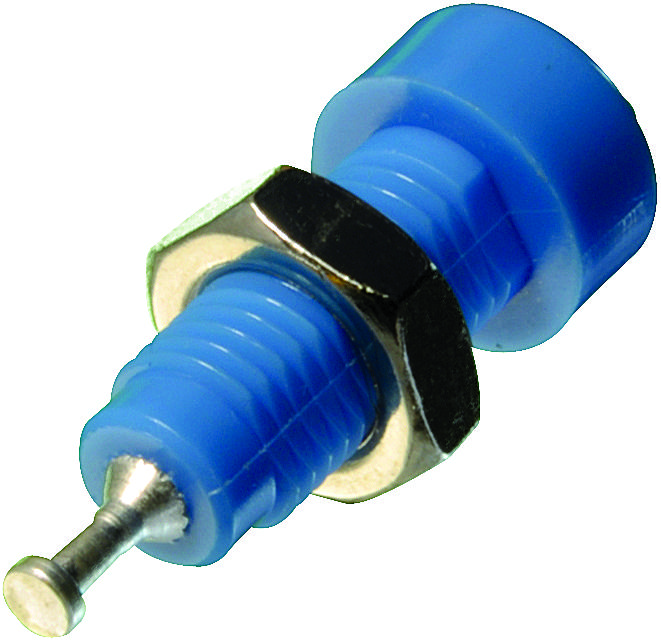

The 105-0610-001 is a blue insulated deluxe test jack with silver-plated brass contacts, a wrap-around beryllium copper spring, and a robust nylon 6/6 body. Equipped with nickel-plated hardware, it features machined turret terminals and a hex socket head for effortless mounting. The design limits probe access to probes smaller than 0.085 inches (2.16mm), with a maximum contact resistance of 0.010 ohms and a panel capacitance of 2 pF. Ideal for testing and measurement applications demanding reliability and precision.
Johnson-Cinch Connectivity Solutions 1050610001 Test Jack Specifications:
- Contact Material: Brass with silver plating
- Spring Material: Beryllium copper with wrap-around design
- Body Material: Nylon 6/6, UL recognized for self-extinguishing
- Finish: Silver-plated contacts, nickel-plated hardware
- Contact Resistance: 0.010 ohms maximum
- Breakdown Voltage: 5700 Vrms minimum
- Current Rating: 10 amps
- Panel Thickness Compatibility: Up to 0.437 inches (11.10 mm)
- Body Thread Stripping Torque: 0.4 lb. in (4.5 kg. cm.)
- Mounting Hole Diameter: 0.080 inches (2.00 mm)
- Mounting Hardware: Nickel-plated nut, hex socket head (.188 inches or 4.77mm)
- Probe Access: Restricted to probes smaller than 0.085 inches (2.16mm)
- Electrical Capacitance: Contact-to-panel nominal 2 pF
- Connector Thread: LL 1a-32 UNEF-20
- Hardware Finish: Nickel plating
- Design Features: Machined turret contact, closed entry for probe protection
Buy the Cinch Connector 105-0610-001 – Reliable Test Jack for Industrial Applications
Discover the Cinch Connector 105-0610-001, a high-quality blue insulated test jack with silver-plated contacts, nylon body, and easy mounting features. Its design ensures probe access restriction to probes below 0.085 inches for accurate testing. Constructed with durable materials, it can handle up to 10 amps and features low contact resistance. Perfect for laboratory, testing, and measurement applications requiring precise, reliable connections. Buy online today for superior performance and dependable testing solutions.
Buy Cinch Connector 105-0610-001 now and experience unmatched reliability and performance for testing and measurement needs in industrial environments.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050610001?
You can click on the BUY or RFQ button to purchase 1050610001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050610001?
You can download the 1050610001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050610001?
Johnson-Cinch Connectivity Solutions
