Johnson-Cinch Connectivity Solutions 1050752001 Horizontal Test Jack

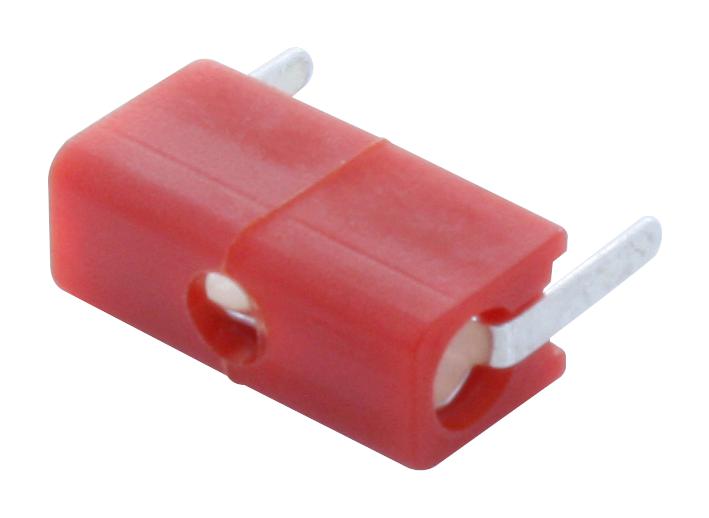

The 105-0752-001 is a red insulated horizontal test jack designed for industrial applications and testing environments. It features a durable nylon 6/6 body that is UL approved for self-extinguishing and a copper-aluminium alloy contact with options for gold or silver finish. The test jack provides probe access from both ends, ensuring versatility and ease of use. With ratings of 5 amps and breakdown voltage of 2100 Vrms minimum, it offers reliable performance. The contact resistance is minimal, 0.005 ohms for gold and 0.010 ohms for silver, ensuring efficient conductivity and signal integrity in testing setups.
Johnson-Cinch Connectivity Solutions 1050752001 Horizontal Test Jack Specifications:
- Contact Material: Copper-aluminium alloy
- Finish: Gold or Silver
- Body Material: Nylon 6/6 per ASTM D4066
- Current Rating: 5 amps
- Breakdown Voltage: 2100 Vrms minimum
- Contact Resistance: Gold: 0.005 ohms, Silver: 0.010 ohms
- Adjacent Jack Capacitance: 1 pF at 1 MHz
- Probe Access: From both ends or top
- Insulation: Nylon UL approved for self-extinguishing
- Minimum Tip Plug Diameter: 0.080 inches (2.00 mm)
Buy the Cinch Connectivity Solutions 1050752001 – Reliable Horizontal Test Jack for Industrial Applications
Discover the high-quality Cinch Connectivity Solutions Horizontal Test Jack, designed for reliable performance in industrial test setups. Featuring copper alloy contacts with gold or silver finish and a UL-approved nylon body, this test jack ensures durability and safety. Its probe access from both ends simplifies testing procedures, while ratings of 5 amps and a breakdown voltage of 2100 Vrms support heavy-duty applications. Perfect for engineers and technicians, order online for quick delivery and dependable testing solutions that meet industry standards.
Get Cinch Connectivity Solutions 1050752001 today—built for precision testing and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050752001?
You can click on the BUY or RFQ button to purchase 1050752001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050752001?
You can download the 1050752001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050752001?
Johnson-Cinch Connectivity Solutions
