Johnson-Cinch Connectivity Solutions 1050756001 Test Jack

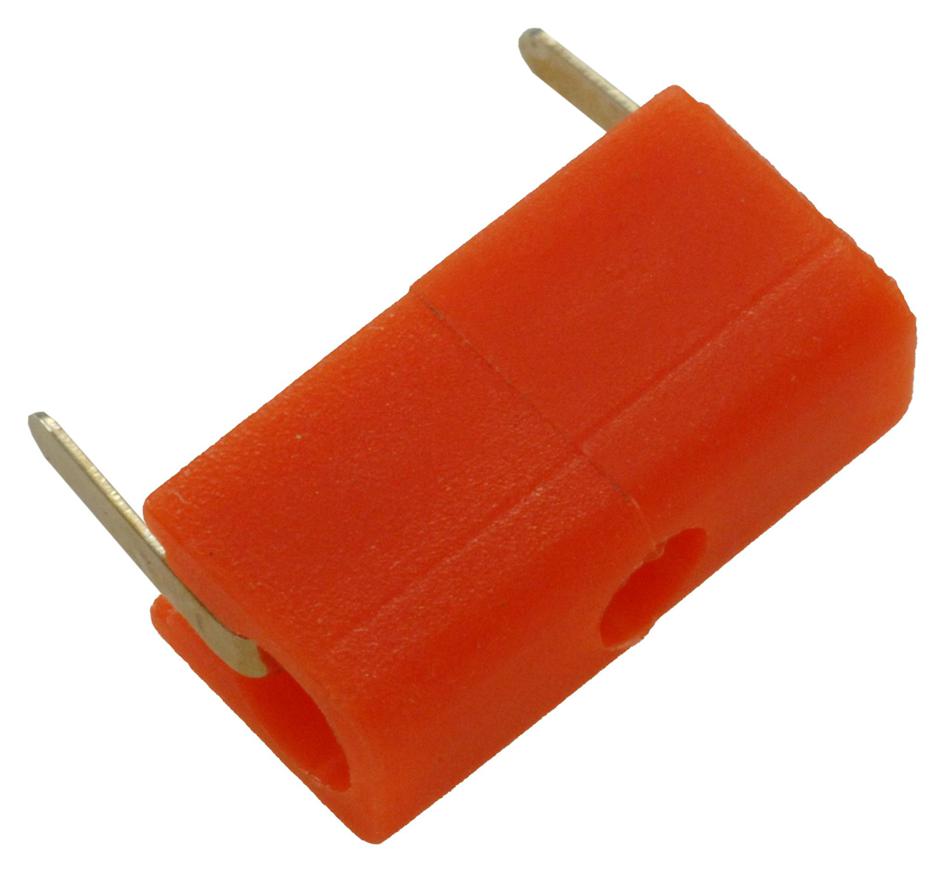

The 105-0756-001 insulated horizontal test jack features a durable nylon 6/6 body and a gold-plated copper aluminum alloy contact, ensuring reliable electrical connections. Designed for test and measurement applications, it offers probe access from both ends or the top while protecting the contact area from flux and solder residue. The self-extinguishing nylon body complies with UL standards, providing enhanced safety. With a maximum current of 5 amps and a breakdown voltage of 2100 Vrms minimum, this test jack is ideal for industrial and electronic testing environments, combining durability with precise electrical performance.
Johnson-Cinch Connectivity Solutions 1050756001 Test Jack Specifications:
- Body Material: Nylon 6/6 per ASTM D4066
- Contact Material: Copper aluminum alloy, gold or silver finish
- Finish: Gold or Silver
- Current Rating: 5 amps
- Breakdown Voltage: 2100 Vrms minimum
- Contact Resistance: Gold: 0.005 ohms maximum, Silver: 0.010 ohms maximum
- Adjacent Jack Capacitance: 1 pF maximum at 1 MHz
- Probe Diameter: .080 inches (2.00 mm)
- Solder termination, protected contact area from flux and solder
- UL Approved, self-extinguishing nylon body
- Mounting hole layout included
- Maximum adjacent jack capacitance: 1 pF at 1 MHz
- Dimensions: Body length and mounting hole layout compliant with standard test fixture requirements
Buy the Cinch 105-0756-001 – Reliable Test Jack for Industrial Applications
Purchase the Cinch Series105-0756-001 insulated horizontal test jack online today and enhance your testing setup with a highly durable, safe, and reliable component. Its nylon body provides UL-approved self-extinguishing safety, while the gold-plated copper alloy contact ensures excellent electrical performance. Designed for easy probe access from both ends or the top, it is ideal for industrial testing, measurement, and electronic assembly. Secure fast online ordering and experience dependable operation in your testing and measurement applications.
Order your Cinch Series105-0756-001 test jack today and ensure precise, safe, and reliable connections for your industrial testing projects.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050756001?
You can click on the BUY or RFQ button to purchase 1050756001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050756001?
You can download the 1050756001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050756001?
Johnson-Cinch Connectivity Solutions
