Johnson-Cinch Connectivity Solutions 1050757001 Test Jack

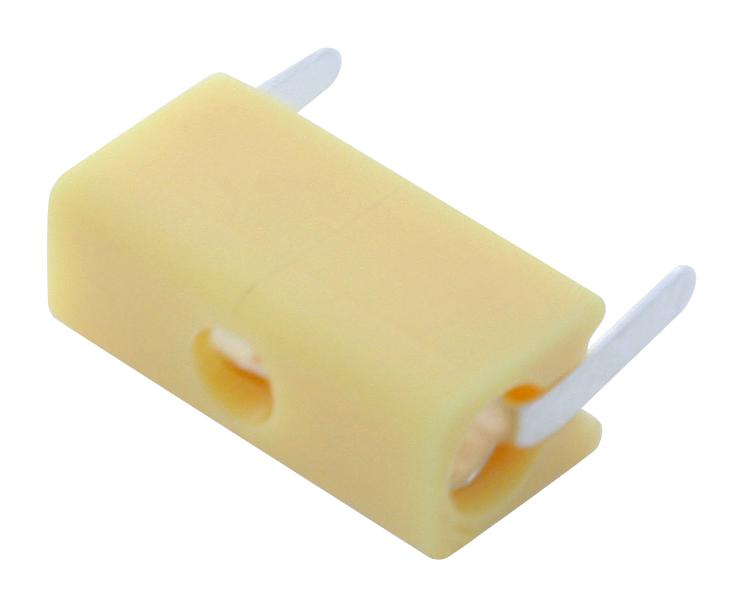

The 105-0757-001 insulated standard horizontal test jack features a durable nylon 6/6 body and a gold-plated copper aluminum alloy contact, ensuring high conductivity and corrosion resistance. It offers probe access from either end or the top, with solder contact termination for reliable connections. UL approved, nylon material provides self-extinguishing safety. With a maximum adjacent capacitance of 1 pF at 1 MHz and rated for 5 amps, this test jack is ideal for precise testing, measurement, and industrial applications requiring reliable, high-performance connectivity in a compact design.
Johnson-Cinch Connectivity Solutions 1050757001 Test Jack Specifications:
- Body Material: Nylon 6/6 conforming to ASTM D4066
- Contact Material: Copper aluminum alloy with gold or silver finish
- Finish: Gold plating
- Current Rating: 5 amps
- Breakdown Voltage: 2100 Vrms minimum
- Contact Resistance: Gold: 0.005 ohms maximum, Silver: 0.010 ohms maximum
- Adjacent Capacitance: 1 pF at 1 MHz
- Probe Access: From both ends or the top
- UL Approved: Yes, for self-extinguishing properties
- Tip Diameter: .080 inches (2.00 mm)
- Applicable for test and measurement applications, industrial environments, reliable connections
Buy the Cinch Connectivity Solutions 1050757001 – Reliable Test Jack for Industrial Applications
Order the Cinch Connectivity Solutions 1050757001 test jack online today for dependable measurement and testing solutions. Featuring a nylon body, gold-plated contact, and probe access from both ends or the top, this tested device ensures safe, accurate, and reliable connections. With UL approval, high current capacity, and minimal capacitance, it’s ideal for industrial applications, test labs, and measurement setups. Enhance your testing equipment today with this durable, high-performance test jack designed for demanding environments and precise measurements.
Buy Cinch Connectivity Solutions 1050757001 now and experience proven reliability and precise testing performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050757001?
You can click on the BUY or RFQ button to purchase 1050757001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050757001?
You can download the 1050757001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050757001?
Johnson-Cinch Connectivity Solutions
