Johnson-Cinch Connectivity Solutions 1050773001 Tip Plug

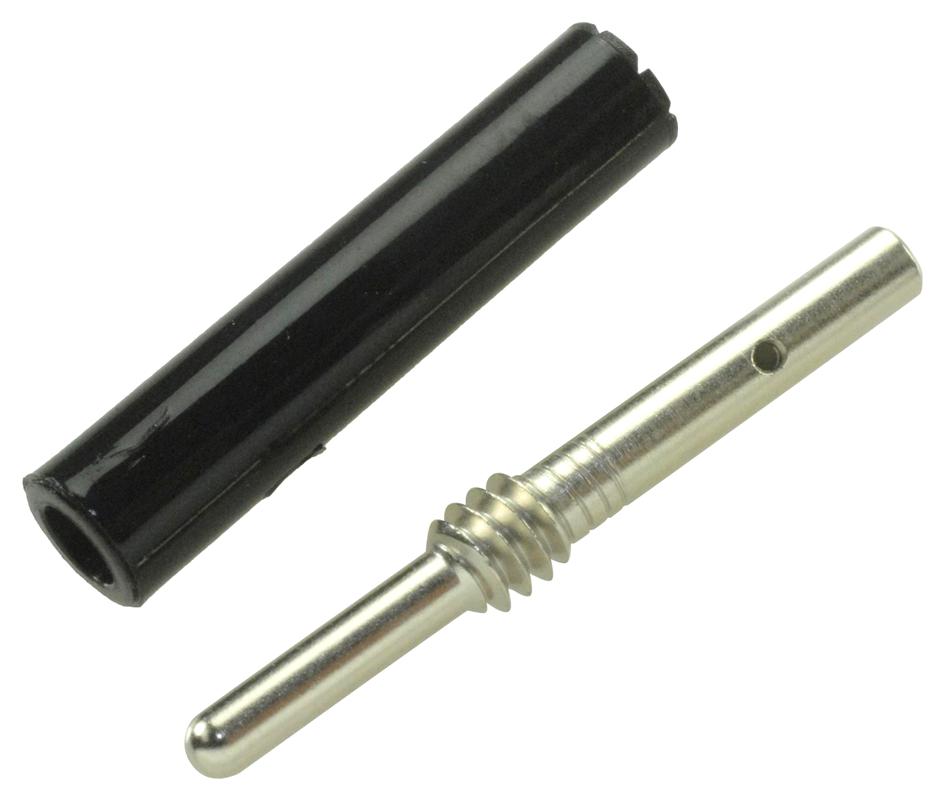

The 105-0773-001 insulated standard tip plug features a nickel-plated brass contact and a UL-approved nylon 6/6 insulated handle, designed for wire sizes up to 16 AWG. It is intended for use with horizontal and vertical test jacks, making it ideal for testing, measurement, and industrial applications. With a maximum contact resistance of 0.01 ohms and a breakdown voltage of 3500 VRMS, this tip plug offers reliable electrical connections with safety and durability, suitable for monitoring and testing equipment in demanding environments.
Johnson-Cinch Connectivity Solutions 1050773001 Tip Plug Specifications:
- Contact Material: Brass per QQ-B-626D
- Finish: Nickel DB HO
- Handle Material: Nylon 6/6 per ASTM D4066
- Maximum Wire Size: 16 AWG
- Breakdown Voltage: 3500 VRMS minimum
- Contact Resistance: 0.010 ohms maximum
- Insulation: Nylon 6/6 UL-approved, self-extinguishing
- Dimensions: .080 (2.00) inches diameter, handle length .188 (4.78) inches
- Current Rating: 10 amps
- Color Options: White, Red, Black
- Application: Suitable for connections to monitoring equipment and test jacks
- Certifications: UL approved
Buy the Johnson Series Tip Plug: 105-0773-001
Purchase the Johnson 105-0773-001 insulated tip plug online today to ensure precise and secure connections for testing and measurement. Featuring a nickel-plated brass contact and UL-approved nylon handle, it offers high durability, safety, and low contact resistance. Designed for wire sizes up to 16 AWG, this plug perfectly suits industrial monitoring and testing applications, providing reliable performance in demanding environments. Order now for fast delivery and upgrade your testing equipment with high-quality, tested electrical connection components.
Buy Johnson 105-0773-001 insulated tip plug now and experience reliable testing connections with durable nickel-plated contacts and safe nylon handles.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050773001?
You can click on the BUY or RFQ button to purchase 1050773001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050773001?
You can download the 1050773001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050773001?
Johnson-Cinch Connectivity Solutions
